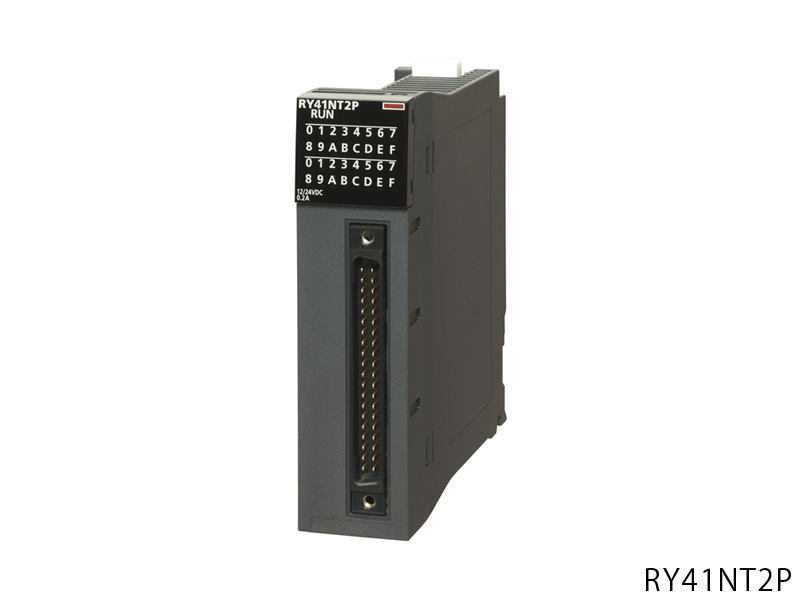

RY41NT2P | MITSUBISHI output module RY41NT2P
MITSUBISHI RY41NT2P Manual And Instructions
RY41NT2P datasheetPDF datasheet
MITSUBISHI RY41NT2P Product information and technical parameters：
Brand: MITSUBISHI
Name: output module
Model: RY41NT2P
Output points: 32 points.
Output form: Transistor (drain type) output.
Rated open and close voltage, current: -.
Rated load voltage: DC12 ~ 24V.
Max load current: 0.2A/ point.
Response time: 1ms.
Common way: 32 point / public end.
Protection function (overload, overheat).
External wiring connection mode: 40 pin connector.
Output module with mechanical relay contact mechanism,
Including the load voltage range of the relay and can be used for the output of the DC12~24V load transistor output type.
According to the load voltage, the output points of different, choose the most suitable user needs of the module.
Preventive maintenance based on the life of relay contact.
Relay output module can accumulate the number of ON of each output point.
Through the understanding of the relay contacts of the number of times, according to the relay life of preventive maintenance.
