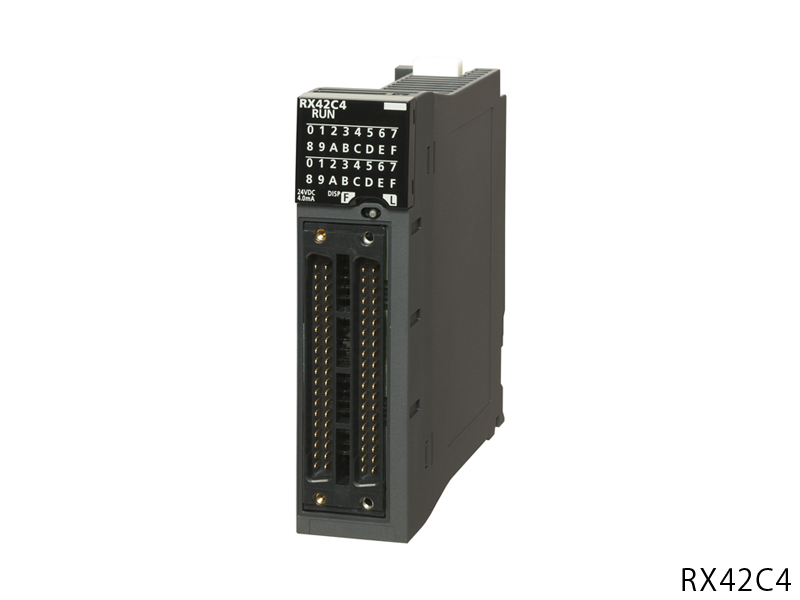

MITSUBISHI RX42C4 Product information and technical parameters：
Brand: MITSUBISHI
Name: Input module
Model: RX42C4
"Enter points: 64 points.
Rated input voltage and frequency: DC24V.
Rated input current: TYP 4.0mA.
Response time: 0.1 ~ 70ms.
Common way: 32 point / public end.
Interrupt function: have.
External wiring connection: 40 pin connector two.
Easily connect input and output terminals with high density.
An input / output module with 16 points, 32 points, 64 points is provided.
According to the user system to select the most suitable models, help to save space and cost.
The terminal row is compatible with the Q series, and can be used directly by the terminal of the existing system.
Therefore, the wiring cost can be reduced when the system is updated.
The module design of the pursuit of convenience".
Paste the white label on the input module and paste the red label on the output module,
The rated specifications are clearly marked on the front of the module, which can prevent the use of errors.
The input and output number stamped on the top of the front display input and output module LED, can easily confirm the status of the ON/OFF.
The terminal arrangement of each signal is recorded on the wiring terminal of the 16 point module, and the false wiring can be prevented.
The 64 point module can be 32 points as the unit, through the switch to switch to display the input and output number.
In addition, serial number tag in the front of the module, can be easily recognized. "
