>> RY10R2 | MITSUBISHI output module RY10R2

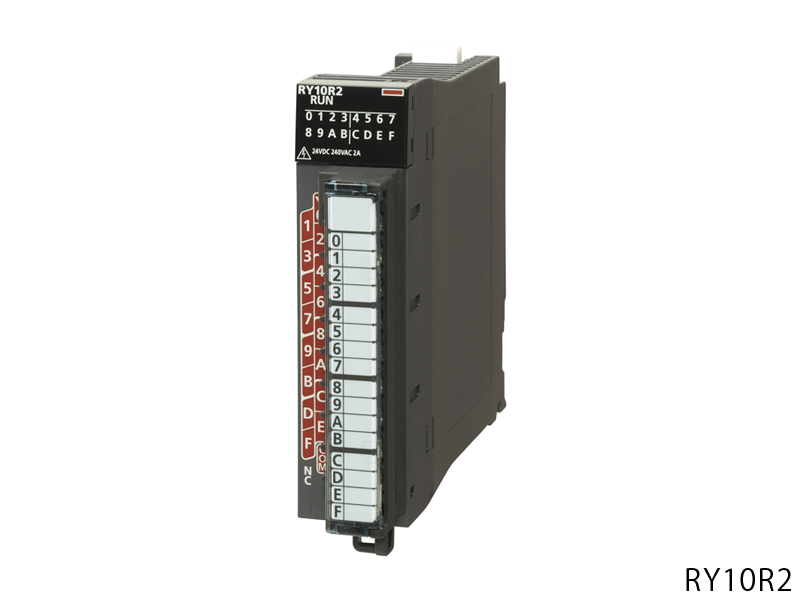

RY10R2 | MITSUBISHI output module RY10R2
MITSUBISHI RY10R2 Manual And Instructions
RY10R2 datasheetPDF datasheet
MITSUBISHI RY10R2 Product information and technical parameters：
Brand: MITSUBISHI
Name: output module
Model: RY10R2
Output points: 16 points.
Output form: relay output.
Rated open and close voltage, current: DC24V/2A, AC240V/2A.
Rated load voltage.
Max load current: -.
Response time: 12ms.
Common way: 16 point / public end.
Protection function (overload, overheat).
External wiring connection mode: 18 point screw terminal.
Output module with mechanical relay contact mechanism,
Including the load voltage range of the relay and can be used for the output of the DC12~24V load transistor output type.
According to the load voltage, the output points of different, choose the most suitable user needs of the module.
Preventive maintenance based on the life of relay contact.
Relay output module can accumulate the number of ON of each output point.
Through the understanding of the relay contacts of the number of times, according to the relay life of preventive maintenance.
