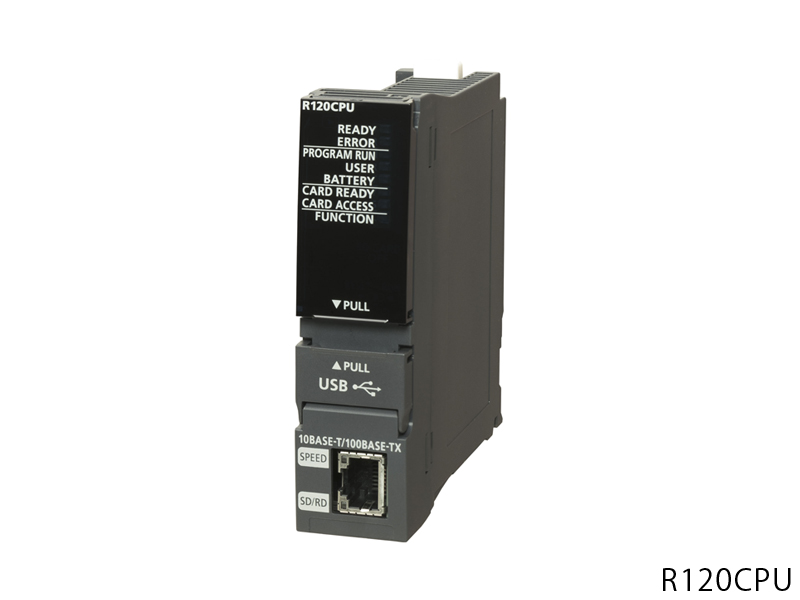

>> R120CPU | MITSUBISHI Programmable logic controller CPU R120CPU
R120CPU | MITSUBISHI Programmable logic controller CPU R120CPU
MITSUBISHI R120CPU Manual And Instructions
R120CPU datasheetPDF datasheet
MITSUBISHI R120CPU Product information and technical parameters：
Brand: MITSUBISHI
Name: Programmable logic controller CPU
Model: R120CPU
Operation control mode: stored procedure repeated operation.
Input / output points: 4096 points.
Program capacity: 1200K.
As the core of the programmable controller control system, programmable controller CPU module has been equipped with a variety of functions,
Support multiple controls. Program capacity from the 40K step to the 1200K step, to select the most suitable system size of the CPU module.
And the CPU module can be directly connected to the industrial network, which can reduce the construction cost of the system.
Soft element / label area for easy processing
The extended SRAM card is installed on the programmable controller CPU module,
Soft element / label storage area with up to 5786K words.
The expansion area is connected to the memory of the built-in CPU module,
The range of soft components / labels can be freely distributed.
Therefore, it can be easily programmed without taking into account the boundaries of each storage area.
In addition, can also use the SD memory card processing records data, database data, such as large capacity data.
