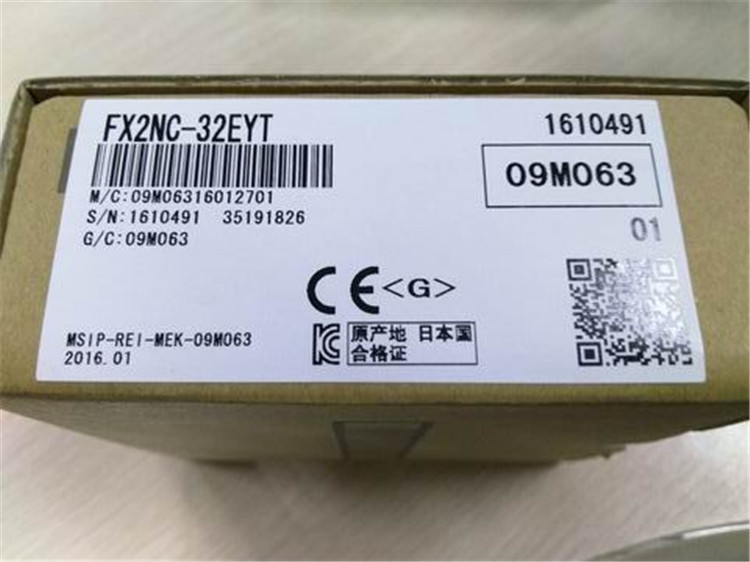

FX2NC-32EYT | MITSUBISHI output module FX2NC-32EYT
MITSUBISHI FX2NC-32EYT Manual And Instructions
FX2NC-32EYT datasheetPDF datasheet
MITSUBISHI FX2NC-32EYT Product information and technical parameters：
Brand: MITSUBISHI
Name: output module
Model: FX2NC-32EYT
Output points: 32 points.
Output form: transistor.
Connected programmable logic controller: FX1NC, FX2NC, FX3UC.
Weight: 0.2KG.
FX2NC expansion module can be directly connected to the FX1NC, FX2NC, PLC FX3UC on the expansion of the input and output.
Do not need to connect the cable and so on, therefore can carry on the compact expansion.
