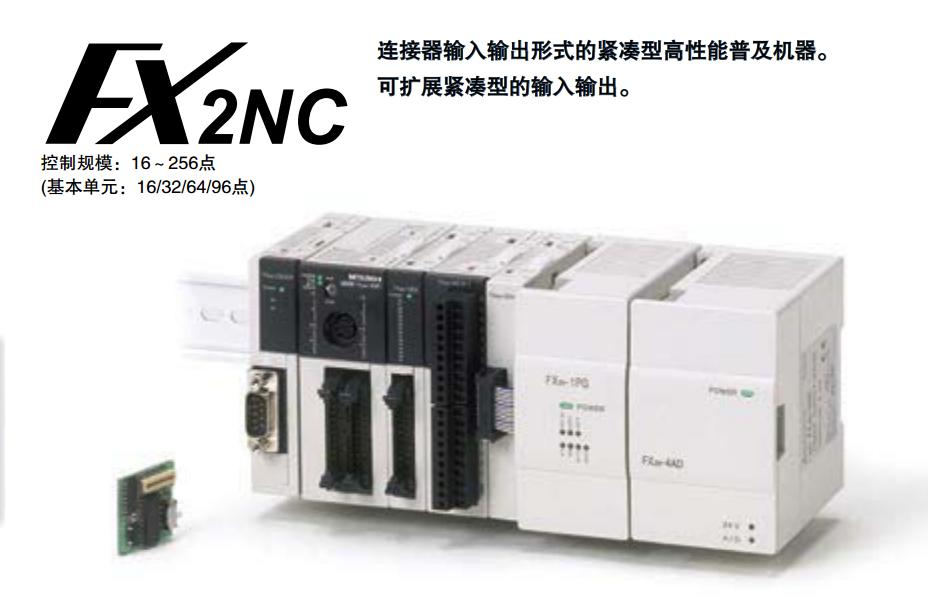

MITSUBISHI FX2NC-32MT-D/UL Market price | FX2NC-32MT-D/UL Introduction

Input and output points: 16 points.
Input points: 8 points.
Input specifications: drain / source.
Output points: 8 points.
Output form: transistor output (source).
Power consumption: 6W.
Weight: 0.2KG.
Outline dimension: 34x90x87mm.
Hard and compact type third generation micro programmable controller.
Connector type input and output type provincial connection.
Greatly strengthened the industry''s highest level of high-speed processing and positioning and other built-in features FX2NC-32MT-D/UL
High cost of the province space models.
FX3UC in the province of space, the province also greatly strengthened the connection of high-speed processing and positioning and other built-in features.
The host is built in DC24V power supply, the connector input and output form of the transistor output.
In addition, according to the product mix can also achieve network communications, analog control, data collection and other functions.
Third generation high function micro programmable controller.
Connector type can save space, province wiring.
Built in high speed processing and positioning.
Ultra small size, control points to 256 points.
Construction of CC-Link remote I/O 384 points. Output points: 4 points.
Output voltage and current: DC12/24V.
Output response time: 2ms.
4 point /1 a public side.
Output form: transistor output, leakage type.
16 point terminal station.
MITSUBISHI PLC protection and chain procedures.
Protection and chain is an indispensable part of the program, must be carefully considered.
It can avoid the control logic confusion caused by illegal operations.
MITSUBISHI PLC initialization procedure. After MITSUBISHI PLC on power, the general need to do some of the initial operation,
In order to start making necessary preparations, to avoid the wrong operation of the system.
The main contents of the initialization program are: to some data area, counter and so on,
Data needed to restore some of the data area,
Set or reset some relays,
For some initial state display, etc..
MITSUBISHI PLC program simulation debugging
The basic idea of program simulation debugging is,
In order to facilitate the form of simulation to generate the actual state of the scene,
Create the necessary environmental conditions for the operation of the program.
Depending on the way the field signals are generated,
The simulation debugging has two forms of hardware simulation and software simulation.
FX2NC-32MT-D/UL Operation manual / Instructions / Catalog download link: /searchDownload.html?Search=FX2NC-32MT-D/UL&select=5
