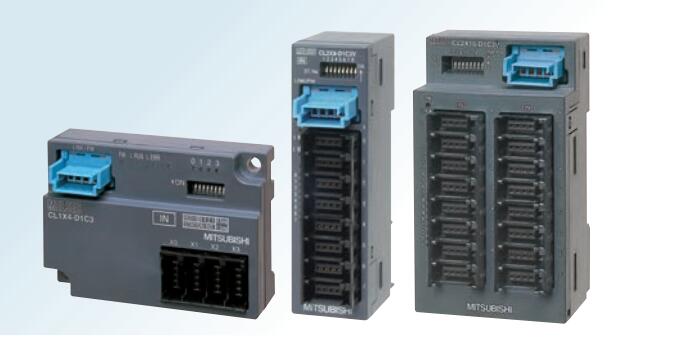

MITSUBISHI CL1Y4-T1C2 Product information and technical parameters：
Brand: MITSUBISHI
Name: Sensor connection type output module
Model: CL1Y4-T1C2
Output type: transistor output, drain type.
Output points: 4 points.
OFF leakage current: 0.1mA.
Output protection function: No.
Rated load voltage / current: DC24V/0.1A.
External connection: 2 wire.
Sensor connection type.
Minimum size of industry.
When installing the module can choose to use the DIN guide rail or screw mounting.
3 wire sensor input.
