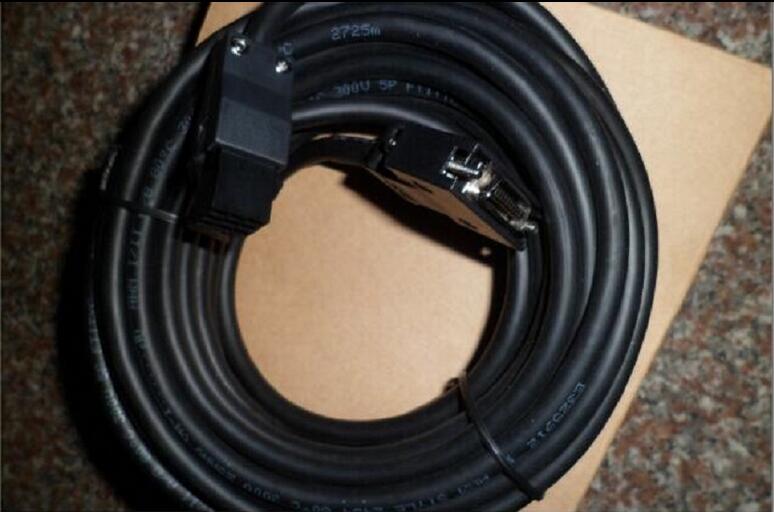

MR-JCCBL5M-L | MITSUBISHI Encoder cable MR-JCCBL5M-L
MITSUBISHI MR-JCCBL5M-L Manual And Instructions
MR-JCCBL5M-L datasheetPDF datasheet
MITSUBISHI MR-JCCBL5M-L Product information and technical parameters：
Brand: MITSUBISHI
Name: Encoder cable
Model: MR-JCCBL5M-L
Cable length: 5m.
For MR-J2S-700A (4) /CP/CL or less.
Encoder for HC-KFS; HC-MFS; 3000r/min HC-UFS servo motor.
-L represents bending life.
