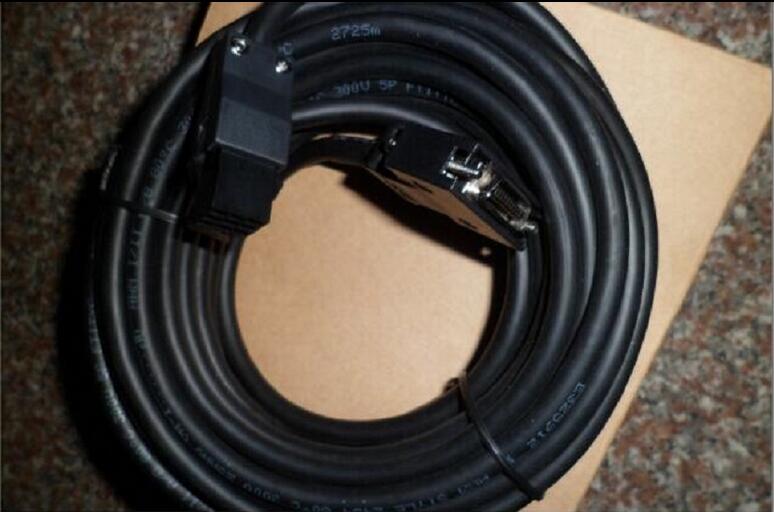

MR-JCCBL2M-L | MITSUBISHI Encoder cable MR-JCCBL2M-L

MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 2.0kw.
Interface type: CC-Link communication type (built-in positioning function).
Power specification: three phase AC200V.
Positioning operation by setting position and rotational speed data in the positioning table and receiving the start signal from the main controller MITSUBISHI MR-JCCBL2M-L.
The setting of the position and speed of the positioning table, as well as the start and stop operation can be completed through CC-Link communication MR-JCCBL2M-L
By using the MR-J3-D01 extension IO unit, the DI/O instruction can be used to select and locate the table.
(CC-Link can not be used for MR-J3-D01 communications).
With built-in positioning function of the servo amplifier, can be set through the CC-Link communications and speed data MITSUBISHI MR-JCCBL2M-L. (corresponding to the CC-Link version: Ver.1.10)
Can be achieved through the CC-Link communications to start, stop and monitoring and other operations.
Serial communication reduce wiring.
Distributed servo control system can be built by CC-Link communication.
The parameters of unit MR-PRU03 (optional) the parameter setting, operation and monitoring more convenient MITSUBISHI MR-JCCBL2M-L.
The servo amplifier can be used for speed control operation.
When the two stations are occupied, the speed can be set directly by the remote register. Motor series: medium inertia, medium capacity.
Using a serial absolute / incremental encoder.
Rated output power: 2.0kw.
Rated speed: 1000rpm.
With a brake band.
Shaft end: straight shaft.
The structure of the AC servo motor stator is basically similar to the capacitor split phase single-phase induction motor.
The stator is provided with two positions of 90 degrees of mutual difference of the winding, one is the excitation winding Rf, it is always connected to the AC voltage Uf;
The other is to control the winding L, which is connected to the control signal voltage Uc.
So the AC servo motor, also known as the two servo motor. Servo motor series: low inertia, small capacity.
Rated output: 0.2kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Oil seal: have.
Corresponding servo amplifier: MR-JE-10B/MR-JE-10A.
Support position control, speed control, torque control, push and press control.
Position control can use linear, arc interpolation controller, fixed size feed control, target position change and other rich functions.
The position control and torque control arre realized by switching control mode MR-JCCBL2M-L.
The gain adjustment of servo can be simply performed by the advanced one key tuning function.
At the same time, it is also able to suppress the low frequency vibration of the manipulator by the advvanced vibration suppression control II,
Shorten the time to complete the positioning, so as to achieve the production of the rhythm of the shortening MR-JCCBL2M-L.
