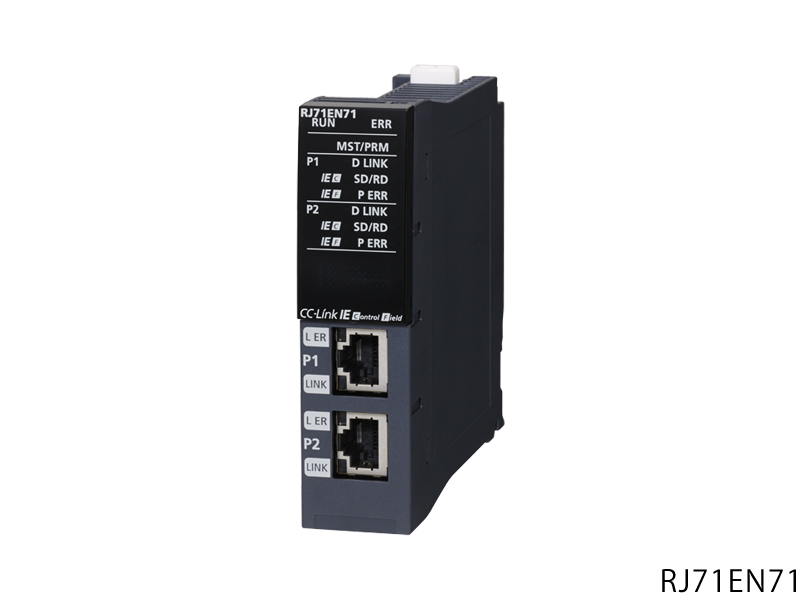

RJ71EN71 | MITSUBISHI Ethernet (built-in IE CC-Link) module RJ71EN71
MITSUBISHI RJ71EN71 Manual And Instructions
RJ71EN71 datasheetPDF datasheet
MITSUBISHI RJ71EN71 Product information and technical parameters：
Brand: MITSUBISHI
Name: Ethernet (built-in IE CC-Link) module
Model: RJ71EN71
Data transmission speed: 1G/100M/10M: bps.
Interface: RJ45 connector (MDI/MDI-X AUTO).
Maximum frame size: 1518/9022 (when using mega frame).
IP version: IPv4: correspondence.
At the same time, the number of open connections: 128.
Fixed cache: 5K word x 16.
Cache for random access: 6K word x 1.
Communication cable: 1000BASE-T standard Ethernet cable: 5E class above, (with double shield, STP) through cable.
Ethernet interface module with 2 Ethernet ports,
Can be used as Ethernet, IE CC-Link controller network (metal cable), IE Field CC-Link network with communication port. In addition,
The module has been adopted to facilitate the identification of the positive words and graphic dot matrix LED,
In order to quickly identify the communication status of the network.
Equipped with 2 Gigabit Ethernet ports support,
Communication of Ethernet, IE CC-Link controller network (metal cable) or IE Field CC-Link network.
The 2 Ethernet ports can be used in combination with other networks.
1 modules can support 2 kinds of network such as Ethernet and IE Field CC-Link network, which can reduce the cost of network construction.
In addition, the Ethernet communication can be simultaneously open 128 connections, which can be connected to more support for Ethernet devices.
Can support a variety of network module products.
Based on IE 1Gbps CC-Link, 128K word high-speed, large capacity network.
1 modules support multiple networks.
Seamless communication through SLMP.
When an exception occurs, the communication can be continued through the ring back function.
Support RS-422/485, RS-232 and other standard interface.
IQ-R MELSEC series contains a variety of network modules and interface modules,
From the computer layer (production management, information system) to the field layer (equipment system), to provide the most suitable for the purpose and use of the network.
Open network IE CC-Link based on Ethernet is the core of the network.
IE CC-Link is an industrial open network with the flexible application of the world standard Ethernet technology,
Seamless connection can be realized from the controller layer to the field layer.
The use of SLMP, from the superior information system to the lower level of equipment, there is no need to consider the network layer.
Can be as 1 kinds of network generally seamless communication, whether in the office or in the field,
Can easily achieve information collection, equipment monitoring and maintenance. In addition, using an Ethernet adapter module,
You can easily connect to the SLMP CC-Link universal Ethernet devices connected to the IE Field network.
Therefore, no need to add a new network can effectively use the visual sensor, RFID controller, such as a variety of Ethernet devices.
...More relevant models >>>>
RJ71EN71 datasheetPDF datasheet
MITSUBISHI RJ71EN71 Product information and technical parameters：
Brand: MITSUBISHI
Name: Ethernet (built-in IE CC-Link) module
Model: RJ71EN71
Data transmission speed: 1G/100M/10M: bps.
Interface: RJ45 connector (MDI/MDI-X AUTO).
Maximum frame size: 1518/9022 (when using mega frame).
IP version: IPv4: correspondence.
At the same time, the number of open connections: 128.
Fixed cache: 5K word x 16.
Cache for random access: 6K word x 1.
Communication cable: 1000BASE-T standard Ethernet cable: 5E class above, (with double shield, STP) through cable.
Ethernet interface module with 2 Ethernet ports,
Can be used as Ethernet, IE CC-Link controller network (metal cable), IE Field CC-Link network with communication port. In addition,
The module has been adopted to facilitate the identification of the positive words and graphic dot matrix LED,
In order to quickly identify the communication status of the network.
Equipped with 2 Gigabit Ethernet ports support,
Communication of Ethernet, IE CC-Link controller network (metal cable) or IE Field CC-Link network.
The 2 Ethernet ports can be used in combination with other networks.
1 modules can support 2 kinds of network such as Ethernet and IE Field CC-Link network, which can reduce the cost of network construction.
In addition, the Ethernet communication can be simultaneously open 128 connections, which can be connected to more support for Ethernet devices.
Can support a variety of network module products.
Based on IE 1Gbps CC-Link, 128K word high-speed, large capacity network.
1 modules support multiple networks.
Seamless communication through SLMP.
When an exception occurs, the communication can be continued through the ring back function.
Support RS-422/485, RS-232 and other standard interface.
IQ-R MELSEC series contains a variety of network modules and interface modules,
From the computer layer (production management, information system) to the field layer (equipment system), to provide the most suitable for the purpose and use of the network.
Open network IE CC-Link based on Ethernet is the core of the network.
IE CC-Link is an industrial open network with the flexible application of the world standard Ethernet technology,
Seamless connection can be realized from the controller layer to the field layer.
The use of SLMP, from the superior information system to the lower level of equipment, there is no need to consider the network layer.
Can be as 1 kinds of network generally seamless communication, whether in the office or in the field,
Can easily achieve information collection, equipment monitoring and maintenance. In addition, using an Ethernet adapter module,
You can easily connect to the SLMP CC-Link universal Ethernet devices connected to the IE Field network.
Therefore, no need to add a new network can effectively use the visual sensor, RFID controller, such as a variety of Ethernet devices.
1Gbps, fiber optic cable, management station / general station.
IE CC-Link controller network is a kind of controller network based on Gigabit Ethernet,
The most suitable for large scale controller decentralized control.
With high speed (1Gbps), large capacity (128K word), using the characteristics of the dual loop fiber,
Controller network system capable of constructing high reliability MITSUBISHI RJ71EN71 RJ71EN71
The fault prone high reliability fiber double loop network is not easy to be transmitted by using the double loop transmission of the strong anti interference fiber cable,
In the event of cable disconnection or power failure, etc., but also through the ring back function to continue communication.
Quick find line fault, module exception
The overall situation of the IE CC-Link controller network can be visualized by engineering software, and the circuit fault and module exception can be found quickly MITSUBISHI RJ71EN71.
Therefore, in case of failure, can quickly identify abnormal parts, in order to shorten the system down time.
In addition, the network can also monitor the status of other stations programmable controller MITSUBISHI RJ71EN71. The input and output module installation number: 12.
Can install module: MELSEC-Q series module.
DIN guide rail mounting adapter type: Q6DIN1.
Size (H) * (44.1mm) * (W) * (D): * 439mm * 98mm.
Substrate module for mounting various modules of MELSEC-Q series.
Extended use of Q series expansion substrates in the following extensions. ""The length of the cable: 5 meters.
IQ-R MELSEC series of "inter module synchronization", refers to the module can be in accordance with the synchronization cycle between modules,
The function of the input and output time synchronization of the multiple input and output modules and the intelligent function modules of the synchronization object.
Using this function, the system and equipment can be controlled with high precision.
In addition, it is also available in the CC-LinkIE field network synchronous communicatiion, so that the action time between the network nodes to maintain synchronization,
To avoid the error caused by the network transmission delay time, so as to build a stable system RJ71EN71.
At the same time using these features, it can be easy to rrespond to the requirements of the high accuracy of the movement of the situation,
For example, the cutting and bending process of offset press, etc RJ71EN71. . "
IE CC-Link controller network is a kind of controller network based on Gigabit Ethernet,
The most suitable for large scale controller decentralized control.
With high speed (1Gbps), large capacity (128K word), using the characteristics of the dual loop fiber,
Controller network system capable of constructing high reliability MITSUBISHI RJ71EN71 RJ71EN71
The fault prone high reliability fiber double loop network is not easy to be transmitted by using the double loop transmission of the strong anti interference fiber cable,
In the event of cable disconnection or power failure, etc., but also through the ring back function to continue communication.
Quick find line fault, module exception
The overall situation of the IE CC-Link controller network can be visualized by engineering software, and the circuit fault and module exception can be found quickly MITSUBISHI RJ71EN71.
Therefore, in case of failure, can quickly identify abnormal parts, in order to shorten the system down time.
In addition, the network can also monitor the status of other stations programmable controller MITSUBISHI RJ71EN71. The input and output module installation number: 12.
Can install module: MELSEC-Q series module.
DIN guide rail mounting adapter type: Q6DIN1.
Size (H) * (44.1mm) * (W) * (D): * 439mm * 98mm.
Substrate module for mounting various modules of MELSEC-Q series.
Extended use of Q series expansion substrates in the following extensions. ""The length of the cable: 5 meters.
IQ-R MELSEC series of "inter module synchronization", refers to the module can be in accordance with the synchronization cycle between modules,
The function of the input and output time synchronization of the multiple input and output modules and the intelligent function modules of the synchronization object.
Using this function, the system and equipment can be controlled with high precision.
In addition, it is also available in the CC-LinkIE field network synchronous communicatiion, so that the action time between the network nodes to maintain synchronization,
To avoid the error caused by the network transmission delay time, so as to build a stable system RJ71EN71.
At the same time using these features, it can be easy to rrespond to the requirements of the high accuracy of the movement of the situation,
For example, the cutting and bending process of offset press, etc RJ71EN71. . "
