>> RD81MES96 | MITSUBISHI MES interface module RD81MES96

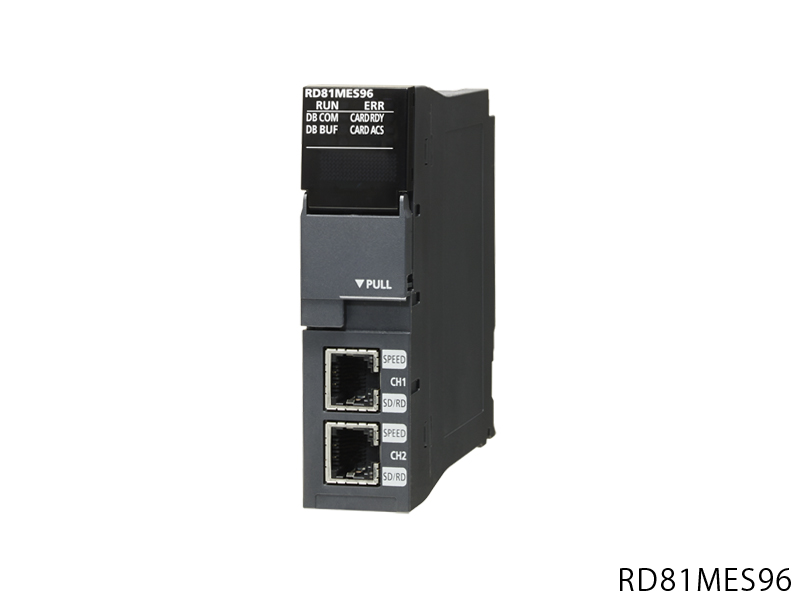

RD81MES96 | MITSUBISHI MES interface module RD81MES96
MITSUBISHI RD81MES96 Manual And Instructions
RD81MES96 datasheetPDF datasheet
MITSUBISHI RD81MES96 Product information and technical parameters：
Brand: MITSUBISHI
Name: MES interface module
Model: RD81MES96
"Database sharing.
FA integration solution "e-F@ctory" to achieve development, production, and maintenance of the various stages of the "TCO reduction" as the primary goal,
Effectively utilize advanced technology, optimize the environment of the factory, and explore the future of manufacturing industry.
As the core component of the "e-F@ctory" information sharing products, MES interface through the shared control system and IT system database,
Achieve production efficiency, product quality improvement.
The information collected from the production site is sent directly to the database.
Conditions can monitor the event data in the MES interface side, in the conditions established, send to the database information of work performance data of IT system.
In addition, the MES interface can be used to read data from the database, such as job instructions.
System construction costs reduced by 65%.
Through the use of MES interface, can be directly connected to the programmable controller and database, simplifying the system structure.
In addition, there is no need to use the gateway computer and the program at the time of connection, so compared with the past,
When the system is constructed, the work time and the time limit for a project are reduced. And, by using the high reliability of MES interface,
Can reduce the computer maintenance, maintenance costs. "
