>> Q64TD | MITSUBISHI Thermocouple type temperature input module Q64TD

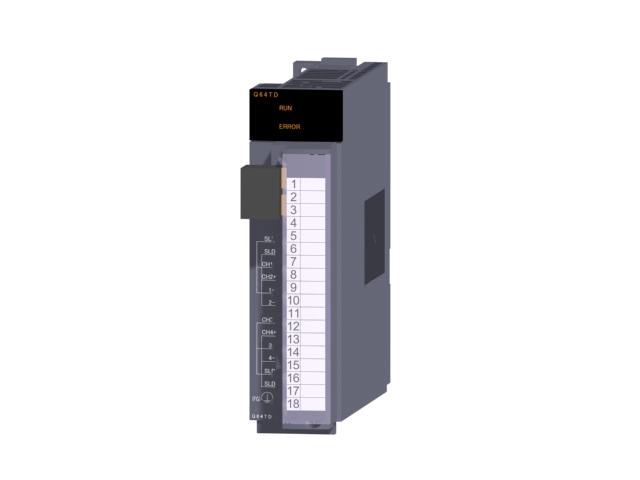

Q64TD | MITSUBISHI Thermocouple type temperature input module Q64TD
MITSUBISHI Q64TD Manual And Instructions
Q64TD datasheetPDF datasheet
Q64TD datasheetPDF datasheet
Q64TD HardwareUser's Manual
Q64TD User's Manual
MITSUBISHI Q64TD Product information and technical parameters：
Brand: MITSUBISHI
Name: Thermocouple type temperature input module
Model: Q64TD
Input: 4 channels.
Thermocouple (C1602-1995 JIS).
Conversion speed: 40ms/1 channel.
18 point terminal station.
Most suitable for process control of isolated analog modules.
Temperature data can be collected by connecting thermocouple / thermal resistance.
Products can choose multi-channel (8 channel) input type and channel isolation type.
Customers can choose the most suitable model according to the intended use.
Auto backup key data
Save the program and parameter files automatically to the program memory (ROM Flash) without using the backup battery,
To prevent the loss of the program and the parameters due to forgetting to replace the battery.
In addition, the soft component data and other important data can be backed up to the standard ROM,
In order to avoid during the long holiday and other planned downtime,
The data is lost due to battery depletion.
The next time the power is turned on, the backup data will be automatically restored.
Reduce system downtime recovery time.
With a simple operation, you can back up all the data in the CPU to the memory card.
Through regular backup, can be the latest parameters, procedures, etc. to save the storage card.
In the event of a CPU failure, after the replacement of CPU, can be a simple operation,
Restore the system by using the data storage card in advance.
Therefore, it is not necessary to spend time to manage the backup data, but also can shorten the recovery time of the system shutdown.
