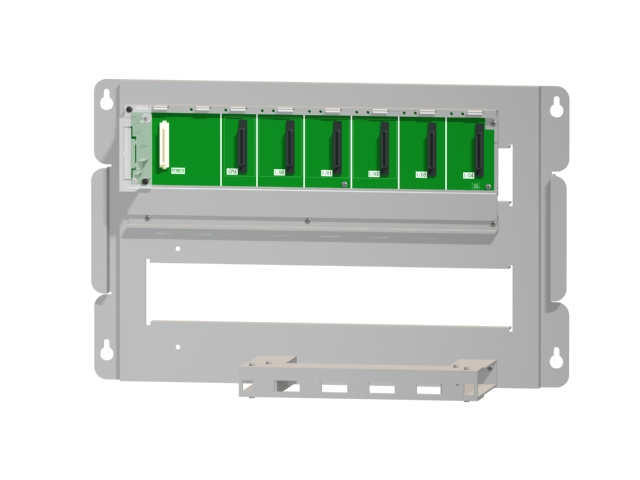

Q35BL | MITSUBISHI Large main substrate Q35BL
MITSUBISHI Q35BL Manual And Instructions
Q35BL datasheetPDF datasheet
Q35BL datasheetPDF datasheet
Q35BL User's Manual
MITSUBISHI Q35BL Product information and technical parameters：
Brand: MITSUBISHI
Name: Large main substrate
Model: Q35BL
5 slots.
The main substrate needs to be equipped with CPU and power supply.
Requires 1 power modules.
Used to install large Q series modules.
Optimal network matching for application purposes and applications,
Seamless communication between different hierarchical systems.
Enhancing the ability of information communication through network.
This is also a major task in the field of automation.
Network environment provided by Q series
Is truly open & seamless.
Including based on universal ethernet,
Achieve easy management of the environment "IE Control CC-Link" controller network,
As well as in its management to achieve a high-speed, high-capacity transmission of the "IE Field CC-Link" field network.
Also including Japan''s first, to achieve the world standard,
And get the SEMI certification of the field network "CC-Link",
And inherited the design concept of the provincial distribution network CC-Link/LT".
And support sensor networks "AnyWire",
To enrich the lineup flexibility to integrate the various layers of automation network.
A variety of modules with excellent performance,
Meet the needs of various control from analog to location.
Q series module products include a variety of types of I/O, analog and positioning function module.
Can fully meet the switch, sensor, such as the input and output, temperature, weight, flow and motor, drive control,
As well as the requirements of high-precision control of the positioning of the industry, the control needs of various fields.
Can also be used in combination with the CPU module to achieve appropriate control.
...More relevant models >>>>
