>> Q2MEM-4MBF | MITSUBISHI Linear flash memory card Q2MEM-4MBF

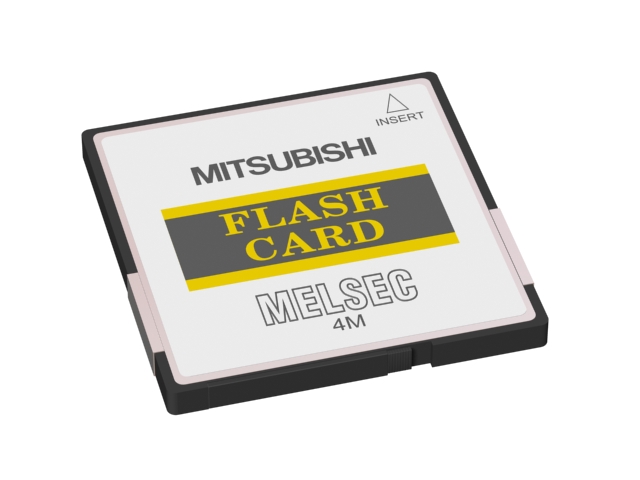

Q2MEM-4MBF | MITSUBISHI Linear flash memory card Q2MEM-4MBF
MITSUBISHI Q2MEM-4MBF Manual And Instructions
Q2MEM-4MBF datasheetPDF datasheet
Q2MEM-4MBF datasheetPDF datasheet
Q2MEM-4MBF Instruction Manual
Q2MEM-4MBF Detailed Manual
MITSUBISHI Q2MEM-4MBF Product information and technical parameters：
Brand: MITSUBISHI
Name: Linear flash memory card
Model: Q2MEM-4MBF
SRAM memory card; capacity: 4M bytes.
Support SD memory card.
High speed universal QCPU support SD memory card,
In order to be able to have a memory card port between SD and PC to easily realize data exchange.
In addition, the SD memory card and the extended SRAM card can be used simultaneously.
Therefore, the extension of the file register using the extended SRAM card,
SD memory card can be used at the same time to carry out the data file record, a large number of annotation data storage, through the memory card to guide operation.
Simply insert the SD memory card, you can automatically record.
Simply insert the SD in the CPU to save the record setting file, you can automatically start recording.
Even when remote data collection is required,
After receiving a record setting file by mail and copy it to the SD memory card,
Can immediately start recording.
Better user experience data recording function.
Easy to record, no need to program.
Simply through the special configuration tool wizard to easily complete the settings,
The collected data can be saved in CSV format to SD storage card.
Can be effectively used to save the CSV file to facilitate the creation of a variety of reference materials,
Including daily reports, generate reports and general reports.
These data can be applied to the data analysis, tracing, etc..
To record the change of control data without missing.
Data can be collected in a time interval or in a millisecond time interval,
To record the change of the specified control data without any omission.
Therefore, in the event of failure, can quickly determine the cause, the precise action analysis.
...More relevant models >>>>
