>> Q2ASHCPU | MITSUBISHI CPU unit Q2ASHCPU

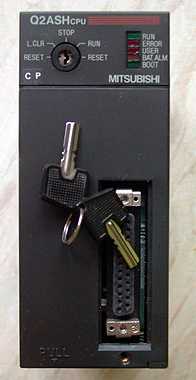

Q2ASHCPU | MITSUBISHI CPU unit Q2ASHCPU
MITSUBISHI Q2ASHCPU Manual And Instructions
Q2ASHCPU datasheetPDF datasheet
Q2ASHCPU HardwareUser's Manual
Q2ASHCPU General Instruction Manual
Q2ASHCPU User's Manual
Q2ASHCPU HardwareUser's Manual
Q2ASHCPU User's Manual
Q2ASHCPU HardwareUser's Manual
Q2ASHCPU HardwareUser's Manual
Q2ASHCPU PID Control InstructionsProgramming Manual
MITSUBISHI Q2ASHCPU Product information and technical parameters：
Brand: MITSUBISHI
Name: CPU unit
Model: Q2ASHCPU
Input and output points: 512 points.
Input / output data points: 8192 points.
Program capacity: 28k.
Basic command processing speed (LD command) S:0.075.
PLC in the program execution stage: according to the order of the user program order to store the order of each instruction,
After the corresponding operation and processing, the result is written to the output status register,
The contents of the output status register are changed with the execution of the program.
Output refresh phase: when all instructions are executed,
The output status register is sent to the output latch in the output refresh stage,
And through a certain way (relay, transistor or transistor) output, drive the corresponding output equipment.
