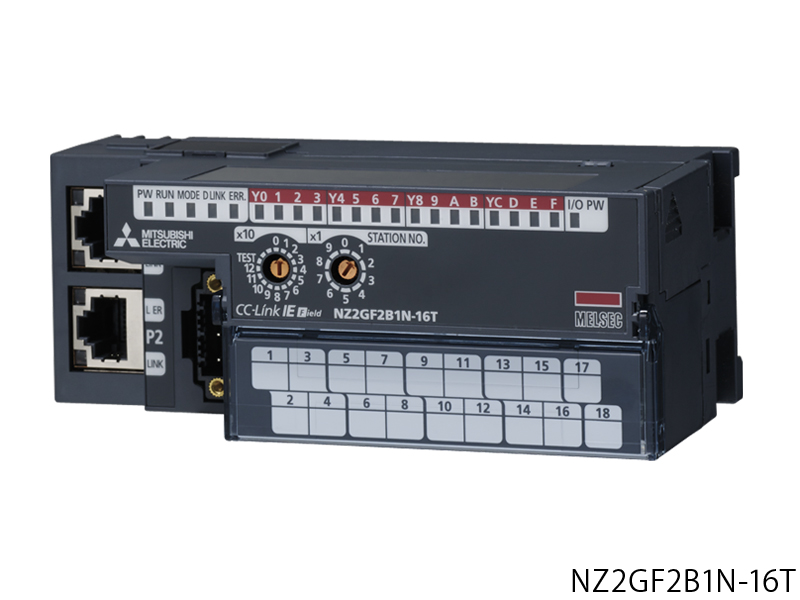

NZ2GF2B1N-16TE | MITSUBISHI Modular remote transistor output module NZ2GF2B1N-16TE
MITSUBISHI NZ2GF2B1N-16TE Manual And Instructions
NZ2GF2B1N-16TE datasheetPDF datasheet
MITSUBISHI NZ2GF2B1N-16TE Product information and technical parameters：
Brand: MITSUBISHI
Name: Modular remote transistor output module
Model: NZ2GF2B1N-16TE
Type: 18 point terminal.
Output form: transistor output, source.
Output points: 16 points.
Rated input voltage / current: DC12/24V (0.5A).
External connection: 1 wire.
By using the output ON number of times, it is convenient to confirm the total number of ON of each output point.
High speed input and output control of a single module can be realized by using first order logic function.
IE CC-Link field network remote equipment station. According to the equipment, more easily distributed input and output devices.
Can be connected to the expansion module, more convenient to expand the input and output points.
Support synchronous communication (using with simple motion control module).
According to the simple motion control module of the network (Master) control cycle of the implementation of the control cycle and its synchronization,
Implementation of multiple simultaneous action from the station.
