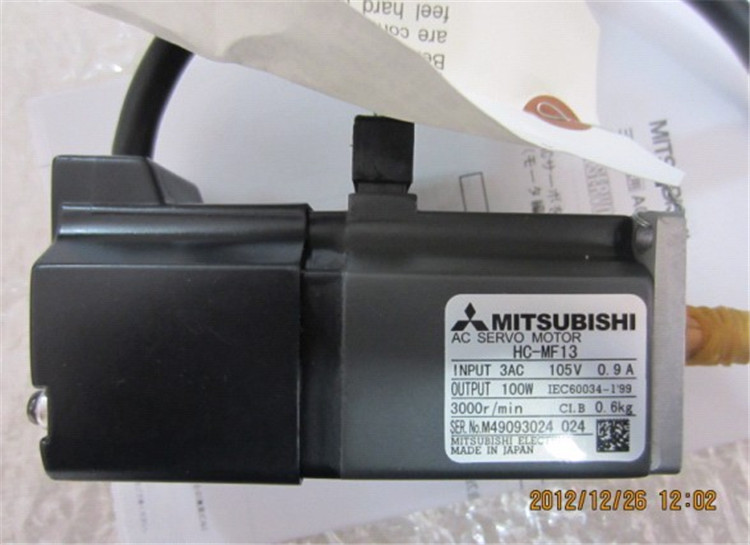

HC-MF13 | MITSUBISHI Ultra low inertia small capacity motor HC-MF13
MITSUBISHI HC-MF13 Manual And Instructions
HC-MF13 datasheetPDF datasheet
MITSUBISHI HC-MF13 Product information and technical parameters：
Brand: MITSUBISHI
Name: Ultra low inertia small capacity motor
Model: HC-MF13
Motor series: ultra low inertia, small capacity.
Using a serial absolute / incremental encoder.
Rated output power: 0.1kw.
Rated speed: 3000rpm.
With the brake: not with brake.
Without GB.
Shaft end: straight shaft.
The rotor of the servo motor is a permanent magnet, and the control of the servo amplifier is controlled by the U/V/W three-phase electric electromagnetic field,
The rotor rotates under the action of the magnetic field, and the encoder feedback signal of the motor is given to the driver,
According to the feedback value and the target value, the driver is compared,
Adjust the rotor rotation angle.
The accuracy of the servo motor is determined by the resolution of the encoder.
