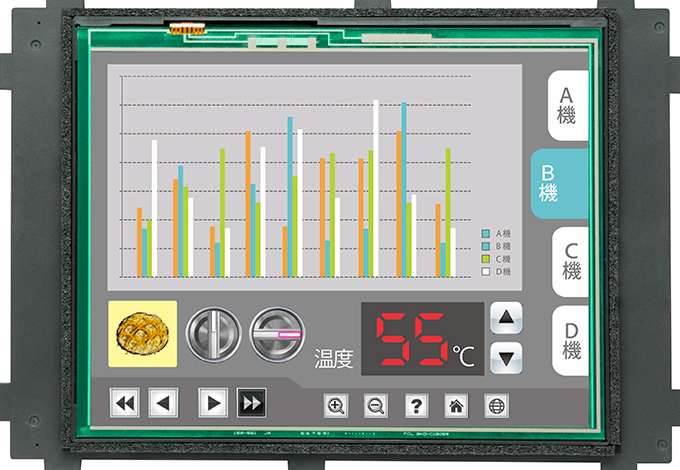

GT2510F-VTND | MITSUBISHI 10.4 inch touch screen GT2510F-VTND

Cable length: 5.0m.
For the connection between QnAS/AnSCPU/ motion controller A7GT-CNB (A Series) and CPU.
Applicable models: GT16, GT15, GT11. Cable length: 3m.
For connection between FXCPU (MINI-DIN8 pin connector) and GOT.
Connection between FXCPU communication function extension board (MINI-DIN8 pin connector) and GOT MITSUBISHI GT2510F-VTND.
Applicable models: GT16, GT15, GT11, HandyGOT, GT10, GT27, GT25, GT23,, GT21 GT2510F-VTND Function: high performance and low price in the middle end model.
Picture size: 8.4 inches.
Resolution: VGA.
Display: TFT color.
Panel color: white.
Power type: DC24V.
Communication interface: CC-Link IE network communication module set.
Middle end model of high performance and low price.
GT25 standard supports SD memory card and standard equipped with Ethernet, RS-232, RS-422/485, host/device USB interface MITSUBISHI GT2510F-VTND.
Even in the log, script, alarm, soft component data transmission, such as high load processing period, but also to achieve smooth operation of the screen.
Connect GOT front USB interface and computer,
Can be through the FA, the GOT machine programming, start and adjust the operation,
Save the trouble of opening the control cabinet and changing the cable MITSUBISHI GT2510F-VTND.
1, USB interface: device USB machine (Mini-B USB)
Can connect to the computer to transfer data.
2, USB interface: host USB (USB-A)
USB data can be transmitted through the USB memory or read log data, such as the GOT data, but also can be connected to the use of the mouse, keyboard.
3, the extension of the interface
Communication module and optional module can be installed.
4, Ethernet interface
Up to 4 different manufacturers can be connected at the same time
FA machine.
5, RS-232 interface
Can connect all kinds of FA machine, bar code reader, serial printer.
6, RS-422/485 interface
Can be connected to a variety of FA machines, bar code reader.
7, SD memory card slot
Can save alarm and log data, such as a large number of data. Series Name: F940WGOT.
System screen display language: english.
Display: 6.7 inch widescreen display.
Display color: 256 color.
Display device: LCD TFF.
Resolution: 480 * 234.
Installation type: panel mounting.
The built-in communication port: RS-422 (1ch) /RS-232C (2ch).
Power supply voltage: DC24V.
GOT-F900 series can be easily applied to a variety of different applications.
3 built-in communication channels.
3 standard communication ports are provided for the same PC (COM2:RS-232C) or a PLC (COM1:RS-232C and COM0:RS-422) communication.
Flexible layout.
F940WGOT can be installed in a vertical or horizontal direction.
The direction of the screen can be directed by programming softwaare GT2510F-VTND.
Screen area.
Through the split screen configuration, you can reduce the operating time.
The image can be divided into two or three parts to display.
According to the user''s application example, the menu screen or the operation of the button sometimes on the screen will often be used to GT2510F-VTND.
As a result, it is very time-consuming and inefficient to make a similar picture every time.
