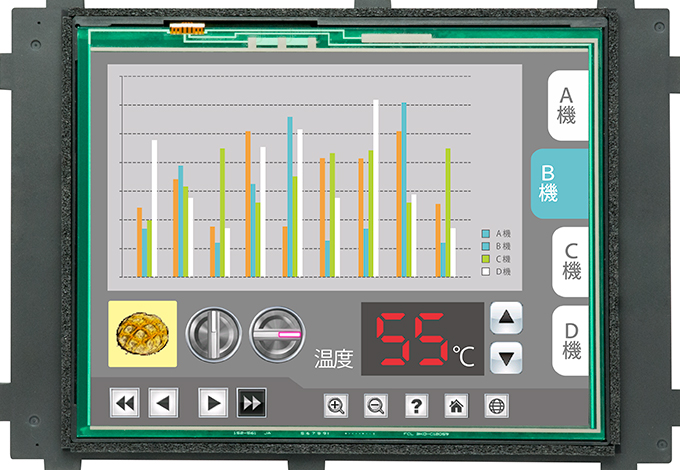

MITSUBISHI GT2510F-VTNA Product information and technical parameters：
Brand: MITSUBISHI
Name: 10.4 inch touch screen
Model: GT2510F-VTNA
Function: high performance and low price in the middle end model.
Picture size: 10.4 inches.
Resolution: VGA.
Display: TFT color.
Open frame type.
Panel color: white.
Power type: AC100~240V.
Middle end model of high performance and low price.
GT25 standard supports SD memory card and standard equipped with Ethernet, RS-232, RS-422/485, host/device USB interface.
Even in the log, script, alarm, soft component data transmission, such as high load processing period, but also to achieve smooth operation of the screen.
Connect GOT front USB interface and computer,
Can be through the FA, the GOT machine programming, start and adjust the operation,
Save the trouble of opening the control cabinet and changing the cable.
1, USB interface: device USB machine (Mini-B USB)
Can connect to the computer to transfer data.
2, USB interface: host USB (USB-A)
USB data can be transmitted through the USB memory or read log data, such as the GOT data, but also can be connected to the use of the mouse, keyboard.
3, the extension of the interface
Communication module and optional module can be installed.
4, Ethernet interface
Up to 4 different manufacturers can be connected at the same time
FA machine.
5, RS-232 interface
Can connect all kinds of FA machine, bar code reader, serial printer.
6, RS-422/485 interface
Can be connected to a variety of FA machines, bar code reader.
7, SD memory card slot
Can save alarm and log data, such as a large number of data.

Bus connector conversion cable packageAnalog RGB input system.
Applicable model: A985GOT-V. Cable length: 1.2m.
For motion controller CPU (A series, the main base system) and the connection between A7GT-CNB.
Applicable models: GT16, GT15, GT11. Protective film for 5.7 inch screen.
Transparent (frame: white), 5 MITSUBISHI GT2510F-VTNA.
Applicable model: GT11. Series Name: A951GOT.
Size: 6 inches.
Resolution: 320 * 240 GT2510F-VTNA
Display device: STN color display.
Display color: 8 color.
Power supply: DC24V.
Built in QnA/A communication interface.
Memory card: 1M.
China is the world''s biggest market for human machine interface,
But it is not the highest sales market in the world,
This shows that the low-end user interface in China has a large share of MITSUBISHI GT2510F-VTNA.
In recent years, the rapid development of national brands, to take a low price and other strategies, is a massive attack on the low end of the market,
Has occupied the dominant position in the low-end market, has won the recognition of the majority of users.
International brands are also gradually developing its economic products, in order to seize the share of the low-end market MITSUBISHI GT2510F-VTNA.
Therefore, in the low-end market steady,
The overall performance of the domestic human machine interface manufacturers showing a rapid growth of the state. Series Name: F940GOT.
System screen display language: japanese.
Display: 5.7 inches, suitable for a variety of applications, GOT.
Display color: monochrome.
Display device: LCD STN.
Resolution: 320 * 240.
Installation type: panel mounting.
The built-in communication port: RS-422 (1ch) /RS-232C (1ch).
Power supply voltage: DC24V.
GOT-F900 series can be easily applied to a variety of different applications.
3 built-in communication channels.
3 standard communication ports are provided for the same PC (COM2:RS-232C) or a PLC (COM1:RS-232C and COM0:RS-422) communication.
Flexible layout.
F940WGOT can be installed in a vertical or horizontal direction.
The direction of the screen can be directed by programming softwaare GT2510F-VTNA.
Screen area.
Through the split screen configuration, you can reduce the operating time.
The image can be divided into two or three parts to display.
According to the user''s application example, the menu screen or the operation of the button sometimes on the screen will often be used to GT2510F-VTNA.
As a result, it is very time-consuming and inefficient to make a similar picture every time.
