>> GT1575V-STBA | MITSUBISHI 10.4 inch touch screen GT1575V-STBA
GT1575V-STBA | MITSUBISHI 10.4 inch touch screen GT1575V-STBA
MITSUBISHI GT1575V-STBA Manual And Instructions
GT1575V-STBA datasheetPDF datasheet
GT1575V-STBA MES Interface Function Manual
GT1575V-STBA Gateway Functions Manual
GT1575V-STBA Extended/Option Functions Manual
GT1575V-STBA Mitsubishi plc ConnectionsConnection Manual
GT1575V-STBA User's Manual
GT1575V-STBA Connection Manual
GT1575V-STBA User's Manual

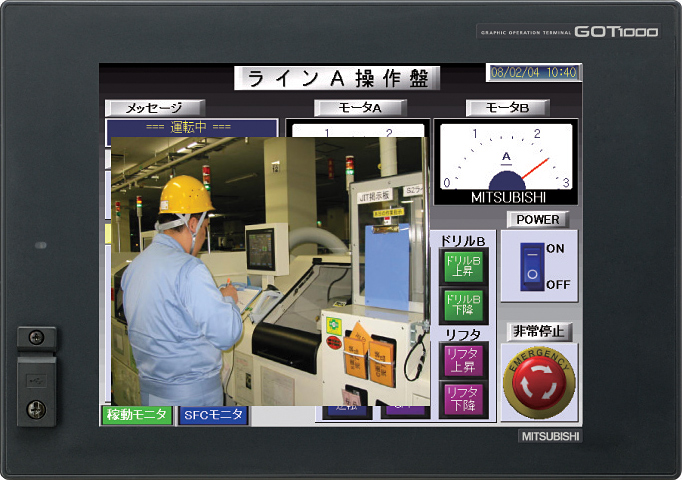

MITSUBISHI GT1575V-STBA Product information and technical parameters：
Brand: MITSUBISHI
Name: 10.4 inch touch screen
Model: GT1575V-STBA
A series of high performance models that are widely used in network or single machine work environments.
Screen size: 10.4 inches.
Display color: 256 color or more color.
Installation type: compatible with video /RGB.
Resolution: SVGA (800 x 600).
Display device: TFT color (high brightness, wide viewing angle).
Host frame color: black.
Power type: AC100~240V.
Communication interface: with built-in RS-422.
Ideal model for high performance in a network or independent operation environment.
User storage capacity: 9MB (GT15__-VNB_:5MB).
Device USB port.
Standard RS-232 interface.
Support video /RGB unit.
If the capacitive touch screen is in the middle of the operation, the display resolution or display mode of the touch screen is changed again,
Or the refresh rate of the touch screen controller is adjusted by itself, and the cursor and the touch point can not be felt when the cursor is not corresponding to the touch point,
Must be re calibrated to the touch screen system.
In order to ensure the normal operation of the touch screen system, in addition to ensure the proper installation of the system software,
Must also remember that in a host do not install two or more than two kinds of touch screen driver,
This will cause the system to run in conflict, so that the touch screen system can not be used properly.
