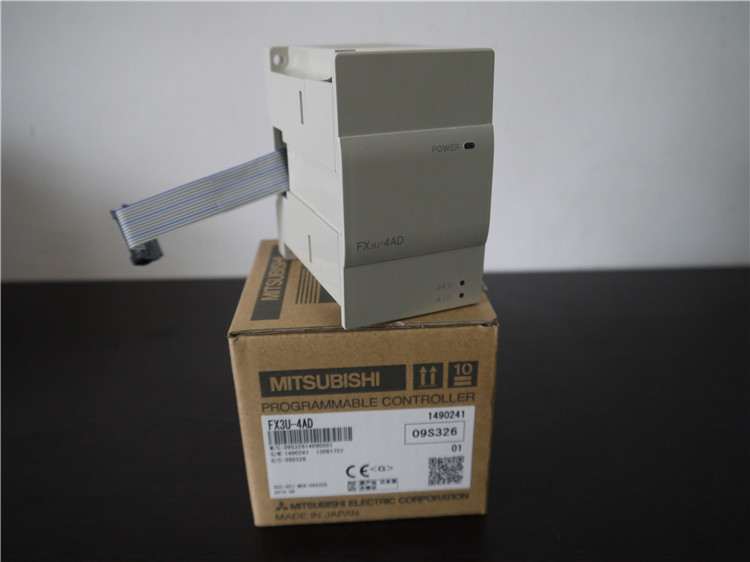

FX3U-4AD | MITSUBISHI Analog input module FX3U-4AD

Input points: 16 points.
Power supply: the basic unit to the expansion module to provide power.
Terminal type: European terminal.
Weight: 0.15kg.
FX3GC, FX3UC can be directly connected to the input and output expansion equipment, to achieve a compact expansion.
Can choose 16 points, 32 points of the relay or transistor input and output models MITSUBISHI FX3U-4AD.
FX2NC-16E_-T-DS for terminal units can be disassembled models FX3U-4AD Max input / output points: 96 points.
Power supply voltage: 24VDC.
Input points: 48 points.
Output points: 48 points.
Output type: Transistor (sink).
Power consumption: 14W.
Weight (kg):0.45.
Size (WxHxD) mm:86x90x87.
Taking into account space saving and processing speed.
Connector input and output type compact high performance universal machine MITSUBISHI FX3U-4AD.
Compact, scalable input / output.
Can connect analog quantity, communication, positioning, etc..
Rich special extension equipment for FX2N.
By connecting the compact FX2rvc series with the input and output expansion module.
The input and output can be extended to 256 points.
Built in 8000 step RAM memory.
By installing the memory card box, the maximum can be extended to the 16000 step MITSUBISHI FX3U-4AD.
Overseas oriented products meet all kinds of international standards.
Use terminal module to replace connector connection or relay terminal row connection,
So as to save the wiring inside the cabinet. Max input / output points: 80 points.
Supply voltage: 100 - 240VAC.
Input points: 40 points.
Output points: 40 points.
Output type: Transistor (source).
Power consumption: 50W.
Weight (kg):1.20.
Size (WxHxD) mm:285x90x86.
Built in CPU, power supply, input and output. By using a rich variety of functional extension boards and special adapters,
Can achieve high precision control.
Based on the function of FX2N has been greatly strengthened and enhanced.
High speed operation.
Basic instructions: 0.065 s/ instruction.
Application instruction: 0.642 s/ instruction.
Large capacity memory.
Built in program memory 64000 steps.
Flash memory cartridge with program transfer function.
Authentication。
Corresponding EN and UL/cUL authentication.
Faster and more efficient. Support high speed control and network communication, and have the function of data recording.
High speed, large capacity, multi-function high-end machine.
FX3U supports high speed processing, CC-Link communication, network communication, analog control and advanced positioning system.
Connected to the CC-Link, including the remote I/O, the maximum input and output control points up to 384 points,
Can correspond to a variety of field needs, the use of its scalability and flexibility to expand the scope of application of the control system.
Third generation high ffunction micro programmable controller FX3U-4AD.
High speed, high efficiency, high performance, large capacity, and new features.
Built in high speed processing and positioning.
Control points: maximum 256 points.
Use CC-Link remote I/O for 384 poinnts FX3U-4AD.
Auxiliary relay: 7680 points.
Timer: 512 points.
Counter: 235.
Data register: 8000.
Extended register: 32768 point.
Extended file register: 32768.
