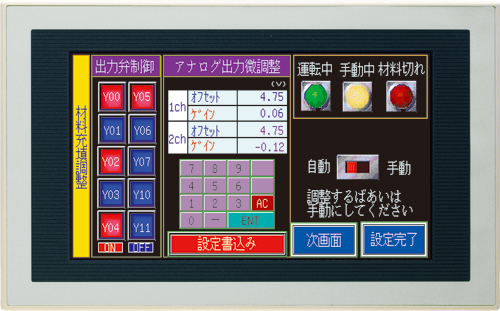

F940WGOT-TWD | MITSUBISHI 6.7 Inch Touch Screen F940WGOT-TWD

F940WGOT-TWD Introduce | F940WGOT-TWD Catalog / Manual / Instructions / Software download

MITSUBISHI F940WGOT-TWD Manual And Instructions
F940WGOT-TWD Installation Manual

MITSUBISHI F940WGOT-TWD Product information and technical parameters：
Brand: MITSUBISHI
Name: 6.7 Inch Touch Screen
Model: F940WGOT-TWD
Series Name: F940WGOT.
System screen display language: japanese.
Display: 6.7 inch widescreen display.
Display color: 256 color.
Display device: LCD TFF.
Resolution: 480 * 234.
Installation type: panel mounting.
The built-in communication port: RS-422 (1ch) /RS-232C (2ch).
Power supply voltage: DC24V.
GOT-F900 series can be easily applied to a variety of different applications.
3 built-in communication channels.
3 standard communication ports are provided for the same PC (COM2:RS-232C) or a PLC (COM1:RS-232C and COM0:RS-422) communication.
Flexible layout.
F940WGOT can be installed in a vertical or horizontal direction.
The direction of the screen can be directed by programming software.
Screen area.
Through the split screen configuration, you can reduce the operating time.
The image can be divided into two or three parts to display.
According to the user''s application example, the menu screen or the operation of the button sometimes on the screen will often be used to.
As a result, it is very time-consuming and inefficient to make a similar picture every time.

Cable length: 3m.
The connection between the CC-LINK interface unit and the smart GOT.
Applicable model: HandyGOT. Series: multimedia and advanced features and features of a variety of high-performance models.
Screen size: 10.4 inches.
Display color: 256 color or more color.
Mounting type: panel mounting type MITSUBISHI F940WGOT-TWD.
Resolution: VGA (640 x 480).
Display device: TFT color.
Host frame color: black F940WGOT-TWD
Power type: AC100~240V.
Communication interface: with built-in RS-422.
High performance models with multimedia and advanced features and functionality (including embedded communications capabilities).
User storage capacity: 15MB (GT16__-VNB__:11MB).
With HOST USB and device USB port.
Standard Ethernet, RS-422/485 and RS-232 ports MITSUBISHI F940WGOT-TWD.
Support multimedia and video /RGB units.
Analog touch panel.
Do not let the touch screen surface with water drops or other soft things stick to the surface,
Otherwise, the touch screen is easy to mistake that there is a hand touch caused by surface acoustic wave screen is not allowed.
In addition to cleaning the dirt on the surface of the touch screen,
You can use a soft dry cloth or a cleaning agent to clean out the center of the screen carefully,
Or use a dry soft cloth dipped in industrial alcohol or glass cleaning fluid to clean the touch screen surface MITSUBISHI F940WGOT-TWD.
Touch screen response is slow if you use a hand or other touch to touch the surface acoustic wave touch screen,
This shows that it is likely that the touch screen system has been obsolete, the internal clock frequency is too low,
Or because there is water in the surface of the touch screen to make the touch screen mobile, rapid response recovery,
To replace or upgrade the system must,, or use dry cloth touch screen on the surface of the water F940WGOT-TWD.
If the user is operating the touch screen, the direction of the touch move is to the left,
But the cursor of the system moves to the right,
The failure may be due to the conneection of the control box and the touch screen connected to the connector or the touch screen,
Users as long as the direction of the re exchange of it F940WGOT-TWD.
