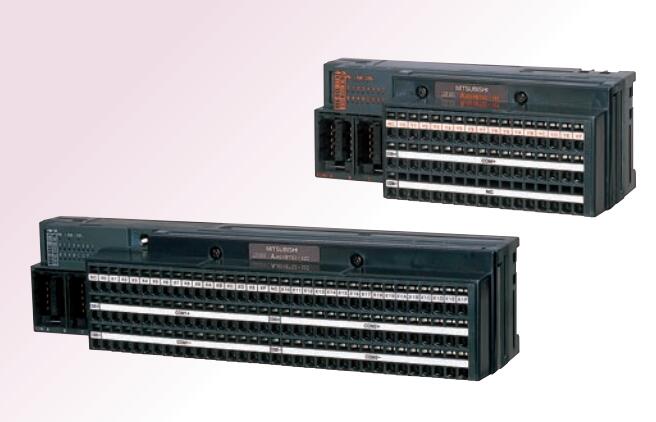

AJ65VBTS2-32T | MITSUBISHI Spring clip terminal type transistor output module AJ65VBTS2-32T
MITSUBISHI AJ65VBTS2-32T Manual And Instructions
AJ65VBTS2-32T datasheetPDF datasheet
MITSUBISHI AJ65VBTS2-32T Product information and technical parameters：
Brand: MITSUBISHI
Name: Spring clip terminal type transistor output module
Model: AJ65VBTS2-32T
Output type: transistor output, drain type.
Output points: 32 points.
OFF leakage current: 0.1mA.
Output protection function: No.
Rated load voltage / current: DC12V/DC24V/0.5A.
External connection: 2 wire.
Spring clip terminal.
Do not need to be tightened further or locked with screws, which can reduce the working hours of wiring.
Using 2 pieces of structure of the terminal units, maintenance can be maintained in the same line under the condition of the replacement module.
When installing the module can choose to use the DIN guide rail or screw mounting.
Can be used for the 3 wire sensor input wiring.
