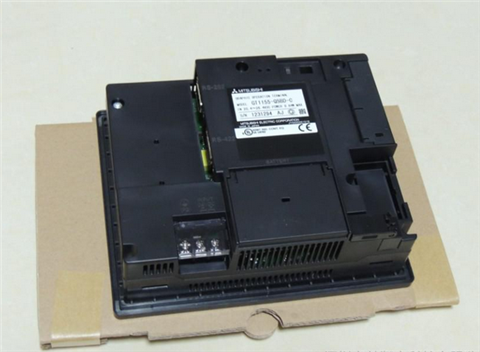

A985GOT-TBD | MITSUBISHI 12 inch man machine interface A985GOT-TBD

Series Name: A985GOT.
Size: 12 inches.
Resolution: 800 * 600.
Display equipment: high brightness TFT color display.
Display color: 256 color.
Power supply: AC100-240V.
Man machine interface (Machine Interaction Human, referred to as HMI), also known as the user interface or user interface,
Is a communication interface between human and computer,
Is an important part of the computer system MITSUBISHI A985GOT-TBD A985GOT-TBD
Is a medium for interaction and information exchange between the system and the user,
It realizes the transformation between the internal form of information and the acceptable form of human being.
Where there is a man-machine interface in the field of human computer information exchange. Cable length: 10 meters MITSUBISHI A985GOT-TBD.
FXCPU GOT.
FXCPU communication function expansion board GOT.
[MINI-DIN 8 pin loose line (row 5 pin interface terminal)].
Applicable model: GT21. Function: high performance and low price in the middle end model.
Picture size: 12.1 inches.
Resolution: SVGA.
Display: TFT color.
Open frame type.
Panel color: black.
Power type: AC100~240V.
Middle end model of high performance and low price.
GT25 standard supports SD memory card and standard equipped with Ethernet, RS-232, RS-422/485, host/device USB interface MITSUBISHI A985GOT-TBD.
Even in the log, script, alarm, soft component data transmission, such as high load processing period, but also to achieve smooth operation of the screen.
Connect GOT front USB interface and computer,
Can be through the FA, the GOT machine programming, start and adjust the operation,
Save the trouble of opening the control cabinet and changing the cable.
1, USB interface: device USB machine (Mini-B USB)
Can connect to the computer to transfer data.
2, USB interface: host USB (USB-A)
USB data can be transmitted through the USB memory or read log data, such as the GOT data, but also can be connected to the use of the mouse, keyboard.
3, the extension of the interface
Communication module and optionall module can be installed A985GOT-TBD.
4, Ethernet interface
Up to 4 different manufacturers can be connected at the same time
FA machine.
5, RS-232 interface
Can connect all kinds of FA machine, bar code reader, serial printer.
6, RS-422/485 interfface
Can be connected to a variety of FA machines, bar code reader A985GOT-TBD.
7, SD memory card slot
Can save alarm and log data, such as a large number of data.
