Motor series: low inertia, medium capacity.
Rated output power: 22.0kw.
Rated speed: 2000rpm.
With the brake: without.
Shaft end: straight shaft.
Brushless motor has small size, light weight, large output, fast response, high speed, small inertia, smooth rotation, and stable torque.
Control is complex, easy to realize intelligent, and its electronic commutation method is flexible, can square wave commutation or sine wave commutation

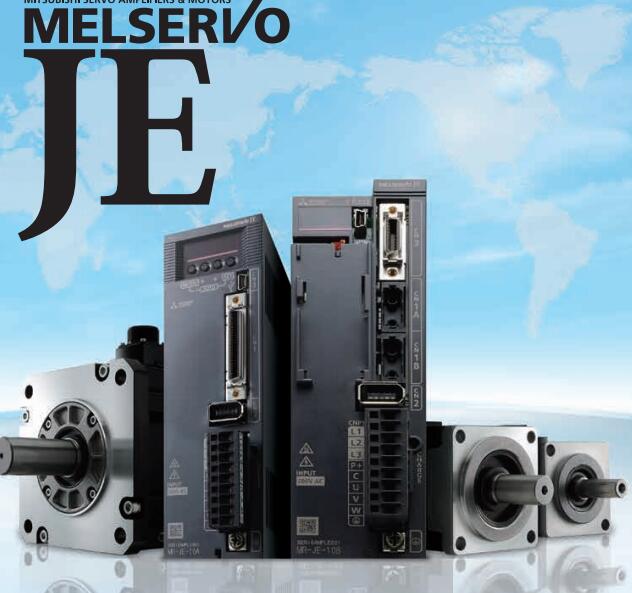

HG-KN73J-S100
Motor maintenance free, high efficiency, low operating temperature, electromagnetic radiation is very small, long life, can be used for a variety of environments.
AC servo motor is brushless motor, which is divided into synchronous and asynchronous motor,
At present, the general use of synchronous motor control, which is a large range of power,
Can do a lot of power.
Large inertia, the maximum rotation speed is low, and with the increase of power and rapid reduction.
So it is suitable for the application of low speed and stable operation. Total input and output points: 40 points.
Input points: 24 points.
Output points: 16 points.
Output type: transistor output.
Power supply voltage: AC100-240V.
Input signal voltage: DC24V.
8K capacity of the RAM memory, the maximum can be extended to 16K.
CPU arithmetic processing speed of 0.08 S/ basic instructions.
On the right side of the FX2N series can be connected to the input and output expansion modules and special function modules.
The basic unit is built in the 2 axis independent maximum 20kHz positioning function (transistor output type).
Quick disconnect the terminal block, which adopts excellent maintainability to quickly disconnect the terminal blocks, even if the cable is then replaced by the cable.
Clock function and hour meter function, all of the PLC FX2N has a real-time clock standard.
Continuous scanning function, to define the operation cycle for the application of the continuous scan time.
Input filter adjustment function, you can use the input filter to smooth the input signal (in the basic unit x000 to x017).
Note recording function, Component annotation can be recorded in the program register.
Online program editor, online change the program will not lose the working hours or stop production operation.
RUN/STOP switch, running on panel / stop switch easy to operate.
Remote maintenance, remote programming software can monitor, upload or uninstall programs and data via modem communications
Password protection, using a eight digit password to protect your program.
HG-KN73J-S100 Operation manual / Instructions / Catalog download link:
