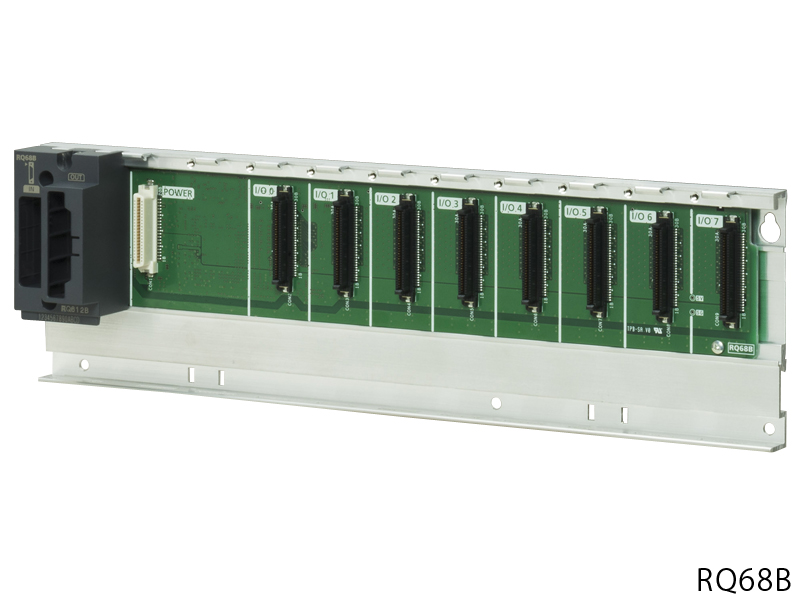

RQ68B | MITSUBISHI RQ extended substrate RQ68B
MITSUBISHI RQ68B Manual And Instructions
RQ68B datasheetPDF datasheet
MITSUBISHI RQ68B Product information and technical parameters：
Brand: MITSUBISHI
Name: RQ extended substrate
Model: RQ68B
The input and output module installation number: 8.
Can install module: MELSEC-Q series module.
DIN guide rail mounting adapter type: Q6DIN1.
Size (H) * (44.1mm) * (W) * (D): * 328mm * 98mm.
Substrate module for mounting various modules of MELSEC-Q series.
Extended use of Q series expansion substrates in the following extensions. "
