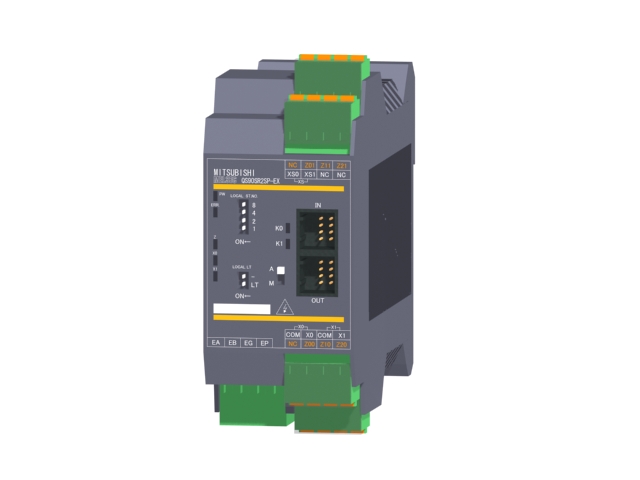

MITSUBISHI QS90SR2SP-EX Product information and technical parameters：
Brand: MITSUBISHI
Name: Safety relay module
Model: QS90SR2SP-EX
Application: extension.
Suitable for safety standards: EN954-1 class 4, PLe ISO13849-1.
Security input points: 1.
Use special setting monitoring tools to configure the configuration directly.
Constitute a rich set of components can be easily and quickly set the hardware structure.
Creating logic for security devices, by using the automatically generated labels of the FB can easily create logic.
Logical import and export.
You can store the connection settings of the input and output modules and the application logic created by the function block as a setting file,
Or read from a saved set file.
...More relevant models >>>>
