>> Q68DAV | MITSUBISHI Voltage output analog module (old model) Q68DAV

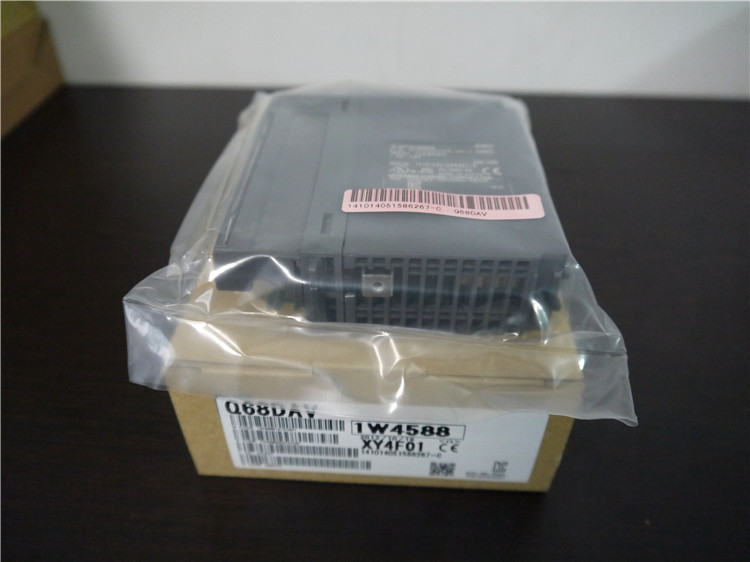

Q68DAV | MITSUBISHI Voltage output analog module (old model) Q68DAV
MITSUBISHI Q68DAV Manual And Instructions
Q68DAV datasheetPDF datasheet
Q68DAV datasheetPDF datasheet
Q68DAV HardwareUser's Manual
Q68DAV User's Manual
MITSUBISHI Q68DAV Product information and technical parameters：
Brand: MITSUBISHI
Name: Voltage output analog module (old model)
Model: Q68DAV
Output: 8 channels.
Input (resolution): 0~4000; -4000~4000; 0~12000; -12000~12000; -16000~16000.
Output: DC-10~10V.
Conversion speed: 80 s/1 channel.
18 point terminal station.
No external isolation amplifier required.
Without the use of inter channel isolation analog modules.
Using the inter channel isolation analog module.
The possibility of expanding control with intelligent function.
Providing a variety of analog modules, is the ideal choice for process control applications.
Can also meet the needs of high speed, high precision control.
Most suitable analog modules for high speed conversion control.
Can provide a variety of analog and digital analog conversion module products.
These modules have a variety of functions, in the connection of equipment, to achieve the greatest flexibility.
Can meet the inverter control, such as high-speed conversion needs.
A variety of modules with excellent performance,
Meet the needs of various control from analog to location.
Q series module products include a variety of types of I/O, analog and positioning function module.
Can fully meet the switch, sensor, such as the input and output, temperature, weight, flow and motor, drive control,
As well as the requirements of high-precision control of the positioning of the industry, the control needs of various fields.
Can also be used in combination with the CPU module to achieve appropriate control.
Transformer isolation between power supply and output.
High insulation strength.
Can isolate electrical interference, such as current and noise, etc..
Standard analog input module.
Isolated analog input module.
