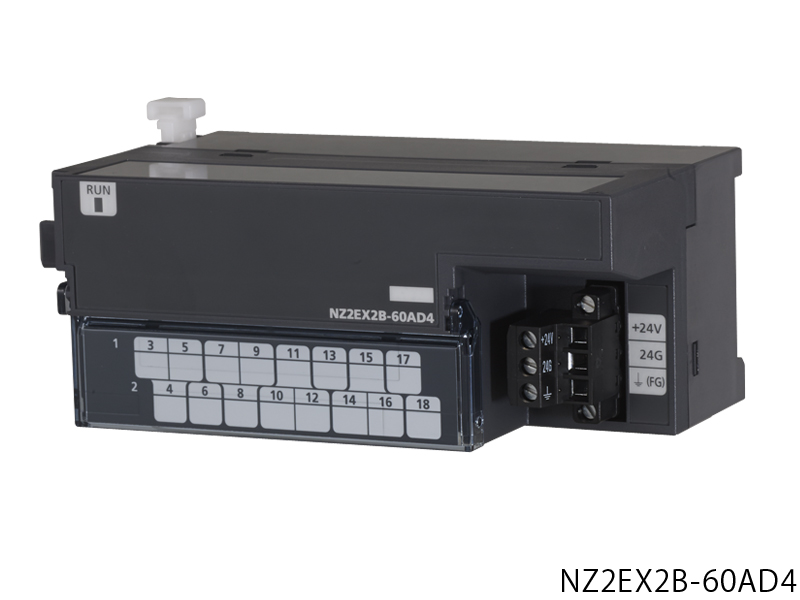

>> NZ2EX2B-60AD4 | MITSUBISHI Extended analog input module for modular remote module NZ2EX2B-60AD4
NZ2EX2B-60AD4 | MITSUBISHI Extended analog input module for modular remote module NZ2EX2B-60AD4
MITSUBISHI NZ2EX2B-60AD4 Manual And Instructions
NZ2EX2B-60AD4 datasheetPDF datasheet
MITSUBISHI NZ2EX2B-60AD4 Product information and technical parameters：
Brand: MITSUBISHI
Name: Extended analog input module for modular remote module
Model: NZ2EX2B-60AD4
Type: 18 point terminal.
Input / output form: analog voltage and current input.
Number of channels: 4 channels.
No need to extend or change the network wiring to increase the number of analog points.
The conversion speed of the analog input module can be selected from 100 mu s/ channel, 400 mu s/ channel and 1ms/ channel. (switching speed switching function)
The conversion speed of the analog output module is 100 mu s/ channel.
Can be connected to the analog input / output module (NZ2GF2BN-60AD4, NZ2GF2BN-60DA4) after the use of.
IE CC-Link field network remote equipment station. According to the equipment, more easily distributed input and output devices.
Can be connected to the expansion module, more convenient to expand the input and output points.
Support synchronous communication (using with simple motion control module).
According to the simple motion control module of the network (Master) control cycle of the implementation of the control cycle and its synchronization,
Implementation of multiple simultaneous action from the station.
...More relevant models >>>>
