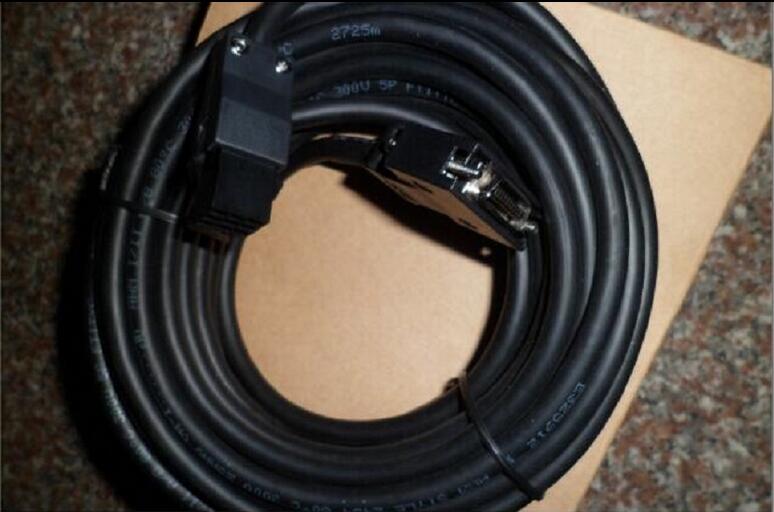

MR-PWS1CBL10M-A1-H | MITSUBISHI Cable for power supply of servo motor MR-PWS1CBL10M-A1-H

MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 11.0kw.
Interface type: CC-Link communication type (built-in positioning function).
Power specification: three phase AC400V.
Positioning operation by setting position and rotational speed data in the positioning table and receiving the start signal from the main controller MITSUBISHI MR-PWS1CBL10M-A1-H.
The setting of the position and speed of the positioning table, as well as the start and stop operation can be completed through CC-Link communication MR-PWS1CBL10M-A1-H
By using the MR-J3-D01 extension IO unit, the DI/O instruction can be used to select and locate the table.
(CC-Link can not be used for MR-J3-D01 communications).
With built-in positioning function of the servo amplifier, can be set through the CC-Link communications and speed data MITSUBISHI MR-PWS1CBL10M-A1-H. (corresponding to the CC-Link version: Ver.1.10)
Can be achieved through the CC-Link communications to start, stop and monitoring and other operations.
Serial communication reduce wiring.
Distributed servo control system can be built by CC-Link communication.
The parameters of unit MR-PRU03 (optional) the parameter setting, operation and monitoring more convenient MITSUBISHI MR-PWS1CBL10M-A1-H.
The servo amplifier can be used for speed control operation.
When the two stations are occupied, the speed can be set directly by the remote register. Servo motor series: low inertia, medium / high power.
Rated output: 1.0kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Voltage: 400V level.
Features: low inertia for high speed / acceleration and deceleration operation occasions.
IP level: IP67.
Application example:
1, food processing machinery.
2, printing machine.
3, injection molding machine (11KW, 15KW).
4, large press machine (11KW, 15KW).
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Low inertia of the power servo motor (0.5kW ~ 9kW), the maximum speed: 6000r/min (rated speed: 3000r/min),
Suitable for high frequency positioning and acceleration / deceleration operations, especially for food processing machines and printing machines.
Low inertia, high power, no cooling fan servo motor (11kW and 15kW), maximum speed: 3000r/min (rated speed: 1500r/min).
The motor structure is more compact due to the adoption of the non cooling fan design, and the connection iss reduced by using the power source connector MR-PWS1CBL10M-A1-H.
(compared with the HF-LP series servo motor with the same power, the volume is reduced by about 46%, and the weight is reduced by about 34%,
Suitable for high frequency positioning annd acceleration / deceleration operations, especially for injection molding machines and large presses MR-PWS1CBL10M-A1-H.
HF-JP703 (4) /903 (4) maximum speed: 5000r/min.
