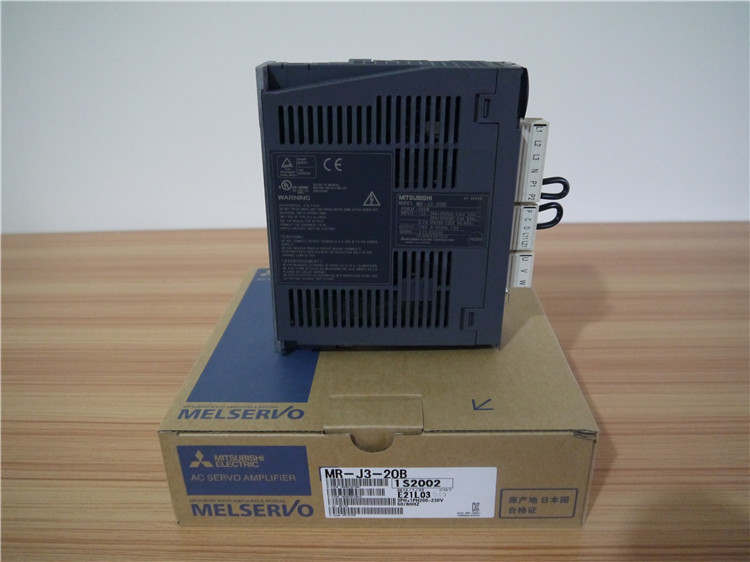

>> MR-J3-20B | MITSUBISHI SSCNET type III optical fiber communication driver MR-J3-20B
MR-J3-20B | MITSUBISHI SSCNET type III optical fiber communication driver MR-J3-20B
MITSUBISHI MR-J3-20B Manual And Instructions
MR-J3-20B datasheetPDF datasheet
MR-J3-20B INSTRUCTION MANUAL
MITSUBISHI MR-J3-20B Product information and technical parameters：
Brand: MITSUBISHI
Name: SSCNET type III optical fiber communication driver
Model: MR-J3-20B
MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 0.2kw.
Interface type: SSCNET type III fiber communication.
Power specification: single phase AC200V.
High speed serial communication between the SSCNET and the servo amplifier by using the fastest up to 0.44ms communication cycle,
A fully synchronous control system can be constructed.
It is only necessary to insert the special optical fiber into the joint to form SSCNET III network, which greatly reduces the wiring work and reduces the possibility of false wiring.
Due to the adoption of the optical fiber communication, the anti noise ability can be greatly improved and the long distance wiring of 50 meters (maximum 800 meters x 16 axes) can be realized.
A servo amplifier to meet the full closed loop control function MR-J3-B-RJ006.
Suitable for mechanical servo optimization and adjustment!
More advanced optimization adjustment function and control function to maximize mechanical properties.
