HF-SP121 | MITSUBISHI Medium inertia power servo motor HF-SP121

HF-SP121 Introduce | HF-SP121 Catalog / Manual / Instructions / Software download

MITSUBISHI HF-SP121 Manual And Instructions
HF-SP121 datasheetPDF datasheet

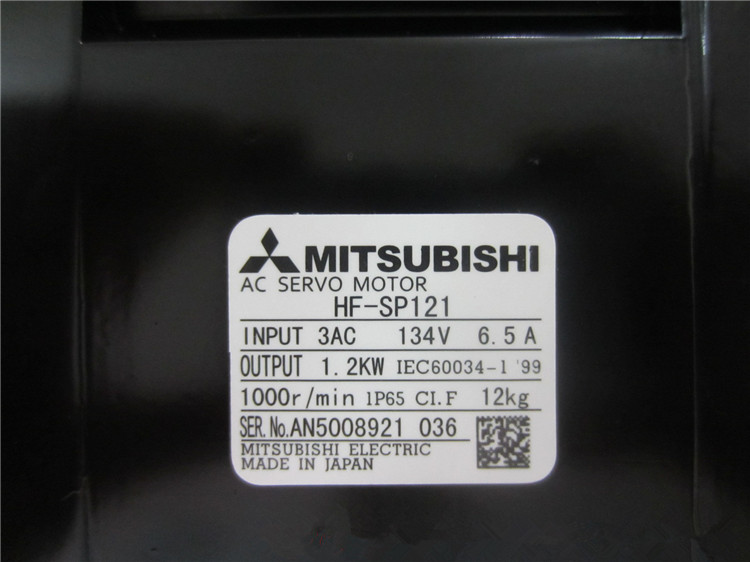

MITSUBISHI HF-SP121 Product information and technical parameters：
Brand: MITSUBISHI
Name: Medium inertia power servo motor
Model: HF-SP121
Servo motor series: medium inertia, medium power.
Rated output: 1.2kw.
Rated speed: 1000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Characteristics: medium inertia has two types of low speed and high speed, suitable for different applications.
IP level: IP67.
Application example:
1, material handling system.
2, industrial robots.
3, X-Y working table.
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Motor capacity selection soft (MRZJW3-MOTSZ111E)
Friendly interface design, only in the mechanical description window input constant and operation mode can choose the best servo amplifier,
The servo motor and the regenerative braking options, but also in the selection window in the selection of linear servo motor and direct drive motor.
Characteristic
(1) 10 typical mechanical transmission structure can be used to choose
(2) user defined operating modes (location and speed control)
(3) in the selection process, the feed speed and torque can be displayed in a graphical format.
(4) the calculation process can be displayed
Can easily calculate the power of the servo motor free software!

Length: 3 meters.
Purpose: MR-JE-A. Cable length: 10m.
For MR-J2S-700A (4) /CP/CL or less.
Encoder for HC-SFS; HC-LFS; HC-RFS; 2000r/min HA-LFS; HC-UFS servo motor.
-H products have a long flex life.
Coding is not resistant to oil. Motor series: low inertia, medium power.
Rated output power: 7.0kw.
Rated speed: 1500r/min MITSUBISHI HF-SP121.
Whether to take the brake: No.
Shaft end: Standard (straight) HF-SP121
Protection level: IP65 (IP67).
Features: low inertia from low speed to high speed, three modes can be selected, suitable for different application range. As a standard port, 30KW or greater power is suitable for flange (type) installation and support foot mounting.
Application example: injection molding machine, semiconductor manufacturing equipment, large conveyor machinery MITSUBISHI HF-SP121.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring. MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 0.1kw.
Interface type: CC-Link communication type (built-in positioning function) MITSUBISHI HF-SP121.
Power specification: single phase AC100V.
Positioning operation by setting position and rotational speed data in the positioning table and receiving the start signal from the main controller.
The setting of the position and speed of the positioning table, as well as the start and stop operation can be completed through CC-Link communication.
By using the MR-J3-D01 extension IO unit, the DI/O instruction can be used to select and locate the table.
(CC-Link can not be used for MR-J3-D01 communications).
With built-in positioning function of the servo amplifier, can be set through the CC-Link communications and speed data. (corresponding to the CC-Link version: Ver.1.10)
Can be achieved through the CC-Link communications to start, stop and monitoringg and other operations HF-SP121.
Serial communication reduce wiring.
Distributed servo control system can be built by CC-Link communication.
The parameters of unit MR-PRU03 (optional) the parameter setting, operation and monitoring more convenient.

The servo amplifier can be used for speed control operation HF-SP121.
When the two stations are occupied, the speed can be set directly by the remote register.
