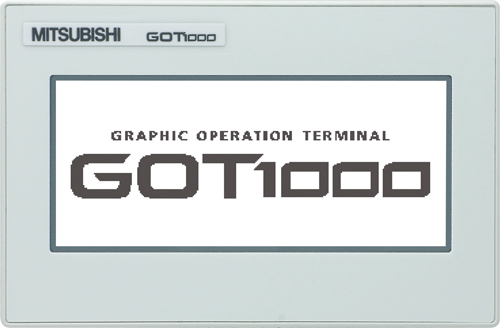

MITSUBISHI GT1020-LWDW Product information and technical parameters：
Brand: MITSUBISHI
Name: 3.7 Inch Touch Screen
Model: GT1020-LWDW
Series introduction: set a number of basic functions in a small body model.
Screen size: 3.7 inches.
Display color: monochrome.
Mounting type: panel mounting type.
Resolution: 288 * 96.
Display device: STN monochrome.
Host frame color: white.
Power type: DC24V.
GT10 backlight: white backlight.
Communication interface: with built-in RS-422.
Set a number of basic functions in a compact type.
GT1055/GT1050/GT1045/GT1040:
User storage capacity: 3MB.
Device USB port.
The standard RS-422/485 and RS-232 interface.
GT1030/GT1020:
User storage capacity: 1.5MB (gt1030) /512kb (gt1020).
Three color LED backlight design, equipment status at a glance.
The standard RS-422/485 or RS-232 interface.
Touch screen, also known as touch screen, touch panel, is a kind of induction type liquid crystal display device can receive contacts and other input signals,
When touching the screen button on the screen,
The tactile feedback system on the screen can drive various connecting devices according to the pre programmed program,
Can be used to replace the mechanical button panel, and by the liquid crystal display screen to create the image of the effect of birth.

For analog RGB input 2CH (1ch individual display).
Applicable model: GT27. A series of high performance models that are widely used in network or single machine work environments.
Screen size: 8.4 inches.
Display color: 16 color.
Mounting type: panel mounting type.
Resolution: VGA (640 x 480).
Display device: TFT color MITSUBISHI GT1020-LWDW.
Host frame color: black.
Power type: DC24V.
Communication interface: with built-in RS-422 GT1020-LWDW
Ideal model for high performance in a network or independent operation environment.
User storage capacity: 9MB (GT15__-VNB_:5MB).
Device USB port.
Standard RS-232 interface.
Support video /RGB unit.
If the capacitive touch screen is in the middle of the operation, the display resolution or display mode of the touch screen is changed again,
Or the refresh rate of the touch screen controller is adjusted by itself, and the cursor and the touch point can not be felt when the cursor is not corresponding to the touch point,
Must be re calibrated to the touch screen system MITSUBISHI GT1020-LWDW.
In order to ensure the normal operation of the touch screen system, in addition to ensure the proper installation of the system software,
Must also remember that in a host do not install two or more than two kinds of touch screen driver,
This will cause the system to run in conflict, so that the touch screen system can not be used properly MITSUBISHI GT1020-LWDW. Series Name: A985GOT.
Size: 12 inches.
Resolution: 800 * 600.
Display equipment: high brightness TFT color display.
Display color: 256 color.
Power supply: AC100-240V.
Man machine interface (Machine Interaction Human, referred to as HMI), also known as the user interface or user interface,
Is a communication interface between human and computer,
Is an important part of the computer system GT1020-LWDW.
Is a medium for interaction and information exchange between the system and the user,
It realizes the transformation between the internal fform of information and the acceptable form of human being GT1020-LWDW.
Where there is a man-machine interface in the field of human computer information exchange.
