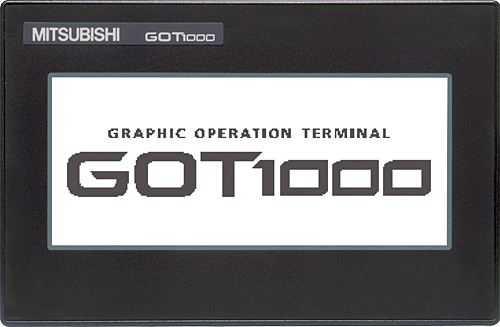

GT1020-LBD2 | MITSUBISHI 3.7 Inch Touch Screen GT1020-LBD2
MITSUBISHI GT1020-LBD2 Manual And Instructions
GT1020-LBD2 datasheetPDF datasheet
GT1020-LBD2 MES Interface Function Manual
GT1020-LBD2 Gateway Functions Manual
GT1020-LBD2 Extended/Option Functions Manual
GT1020-LBD2 Mitsubishi plc ConnectionsConnection Manual
GT1020-LBD2 Connection Manual
GT1020-LBD2 Instructions Manual
MITSUBISHI GT1020-LBD2 Product information and technical parameters：
Brand: MITSUBISHI
Name: 3.7 Inch Touch Screen
Model: GT1020-LBD2
Series introduction: set a number of basic functions in a small body model.
Screen size: 3.7 inches.
Display color: monochrome.
Mounting type: panel mounting type.
Resolution: 288 * 96.
Display device: STN monochrome.
Host frame color: black.
Power type: DC24V.
Communication interface: with built-in RS-232.
Set a number of basic functions in a compact type.
GT1055/GT1050/GT1045/GT1040:
User storage capacity: 3MB.
Device USB port.
The standard RS-422/485 and RS-232 interface.
GT1030/GT1020:
User storage capacity: 1.5MB (gt1030) /512kb (gt1020).
Three color LED backlight design, equipment status at a glance.
The standard RS-422/485 or RS-232 interface.
Touch screen, also known as touch screen, touch panel, is a kind of induction type liquid crystal display device can receive contacts and other input signals,
When touching the screen button on the screen,
The tactile feedback system on the screen can drive various connecting devices according to the pre programmed program,
Can be used to replace the mechanical button panel, and by the liquid crystal display screen to create the image of the effect of birth.
