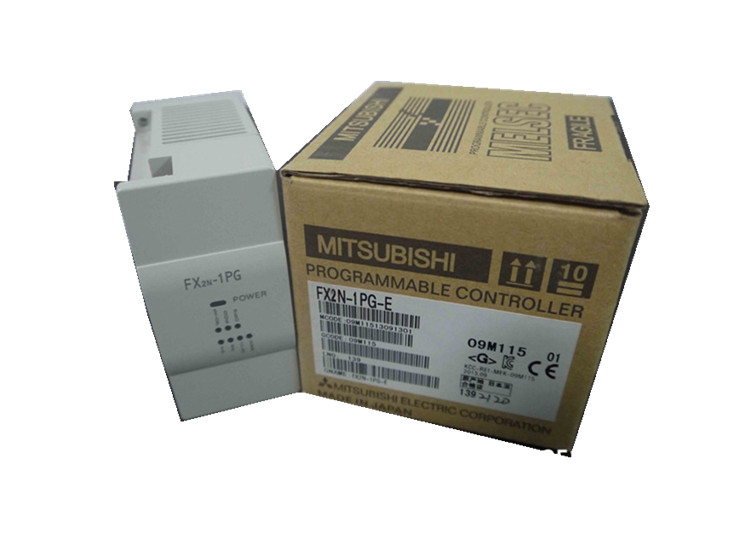

>> FX2N-1PG-E | MITSUBISHI Pulse output module FX2N-1PG-E
FX2N-1PG-E | MITSUBISHI Pulse output module FX2N-1PG-E
MITSUBISHI FX2N-1PG-E Manual And Instructions
FX2N-1PG-E datasheetPDF datasheet
MITSUBISHI FX2N-1PG-E Product information and technical parameters：
Brand: MITSUBISHI
Name: Pulse output module
Model: FX2N-1PG-E
Axis of control: 1.
Applicable PLC:FX1N, FX2N, FX3U, FX2NC (to FX2NC-CNV-IF).
Applicable PLC:FX3UC (to FX2NC-CNV-IF or FX3UC-1PS-5V).
7 operating modules required for easy positioning control are provided.
Type of instruction, please refer to the list in front of you.
One can control a shaft.
FX3U, PLC FX2N can connect up to 8 units,
PLC FX2NC can connect up to 4 units,
PLC FX3UC can connect up to 7 units, so that it can control more than one independent axis.
Maximum can output 100kHz pulse train.
Positioning control through the control program.
