>> FX1S-20MR-ES/UL | MITSUBISHI PLC FX1S-20MR-ES/UL

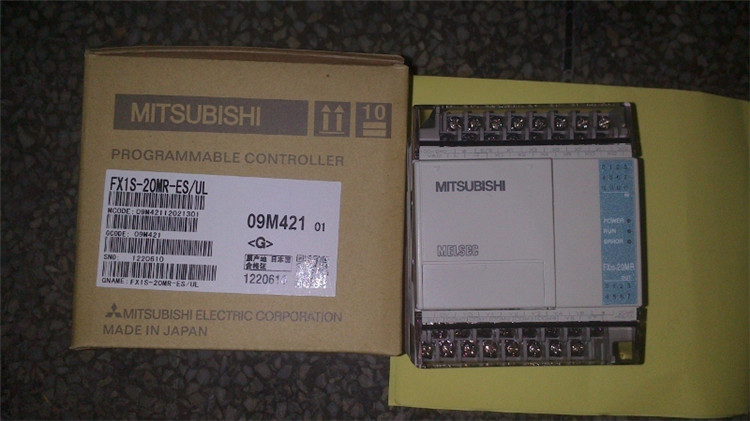

FX1S-20MR-ES/UL | MITSUBISHI PLC FX1S-20MR-ES/UL
MITSUBISHI FX1S-20MR-ES/UL Manual And Instructions
FX1S-20MR-ES/UL datasheetPDF datasheet
FX1S-20MR-ES/UL PROGRAMMING MANUAL II
FX1S-20MR-ES/UL HARDWARE MANUAL
MITSUBISHI FX1S-20MR-ES/UL Product information and technical parameters：
Brand: MITSUBISHI
Name: PLC
Model: FX1S-20MR-ES/UL
Max input / output points: 20 points.
Supply voltage: 100 - 240VAC.
Input points: 12 points.
Output points: 8 points.
Output type: relay.
Power consumption (W): 20.
Weight (kg):0.4.
Size (WxHxD) mm:75x90x75.
Host has 10 points (6I/4O), 14 points (8I/6O), 20 points (12I/8O), 30 points (16I/14O) of 4 types.
This type of PLC is mainly used in all of the digital input, digital output control point of the device.
Can be directly connected to the 220V city power, built-in 8K step EEPROM memory, no battery, easy to maintain.
The series transistor output (MT) of the PLC, can be output 2 100KHz pulse, direct drive servo or stepper motor.
The series PLC can not be brought with the expansion module, but can be installed by the BD board to extend a small amount of I/O.
The series 1N through the installation of BD series PLC board, can achieve RS232, RS485, RS422 communication.
