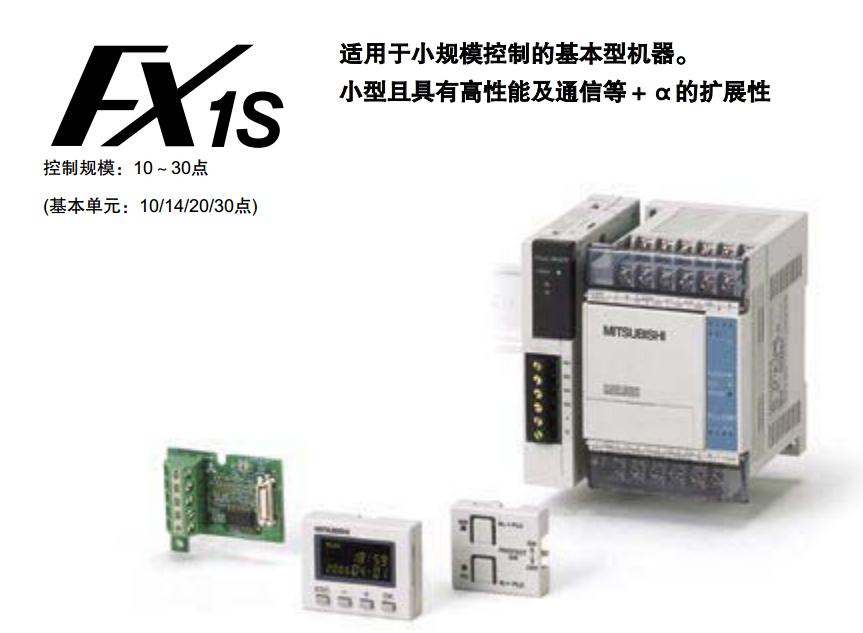

FX1S-14MT-DSS | MITSUBISHI PLC FX1S-14MT-DSS
MITSUBISHI FX1S-14MT-DSS Manual And Instructions
FX1S-14MT-DSS datasheetPDF datasheet
FX1S-14MT-DSS PROGRAMMING MANUAL II
FX1S-14MT-DSS HARDWARE MANUAL
MITSUBISHI FX1S-14MT-DSS Product information and technical parameters：
Brand: MITSUBISHI
Name: PLC
Model: FX1S-14MT-DSS
Max input / output points: 14 points.
Power supply voltage: 24VDC.
Input points: 8 points.
Output points: 6 points.
Output type: Transistor (source).
Power consumption (W): 6.5.
Weight (kg):0.22.
Size (WxHxD) mm:60x90x49.
All equipment is digital input and output point.
The total I/O points are not more than 30 points, and the input points are less than 16, the output points are less than 14.
Its MT series of PLC can drive 2 way servo or stepper, commonly used in the control system for a simple manipulator.
MITSUBISHI FX1S series PLC is suitable for the smallest package,
It is the preferred target for low cost users to seek powerful control over a limited range of I/0.
FX1S provides up to 30 I/O points, and can be transmitted through serial communication data,
MT models also have the ability to locate, widely used in a variety of small mechanical equipment.
