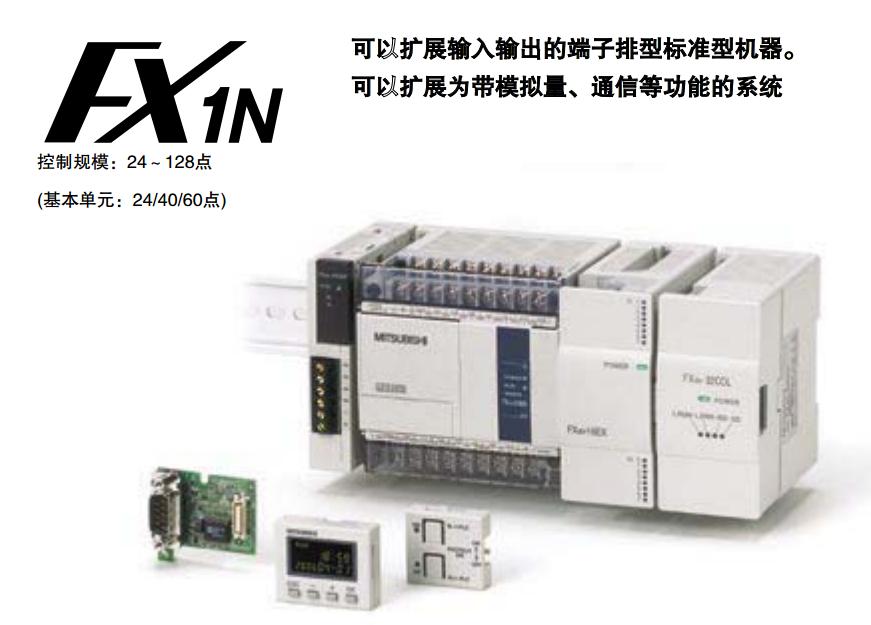

MITSUBISHI FX1N-60MT-ES/UL Product information and technical parameters：
Brand: MITSUBISHI
Name: PLC
Model: FX1N-60MT-ES/UL
Max input / output points: 60 points.
Supply voltage: 100 - 240VAC.
Input points: 36 points.
Output points: 24 points.
Output type: transistor.
Power consumption (W): 35.
Weight (kg):0.8.
Size (WxHxD) mm:175x90x75.
Rich functionality.
FX series of products are rich in variety, users can be based on cost or application,
Choose the most suitable product. Will find a suitable model for the user site.
Terminal row type standard machine with extended input output
Can also be less of a system with analog or communication, etc..
CPU, power supply, input and output integration.
Display module or function expansion board can be less installed.
In addition, you can also reduce the input output or special module.
Built in 8000 step EPROM memory.
No battery. Maintenance free.
Overseas oriented products meet all kinds of international standards.
...More relevant models >>>>
