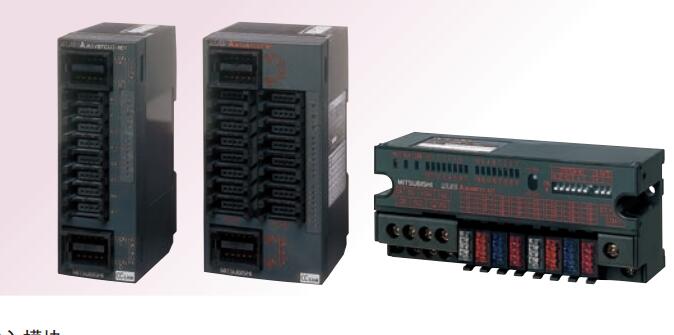

AJ65VBTCU2-8T | MITSUBISHI Fast connector type transistor output module AJ65VBTCU2-8T
MITSUBISHI AJ65VBTCU2-8T Manual And Instructions
AJ65VBTCU2-8T datasheetPDF datasheet
MITSUBISHI AJ65VBTCU2-8T Product information and technical parameters：
Brand: MITSUBISHI
Name: Fast connector type transistor output module
Model: AJ65VBTCU2-8T
Output type: transistor output, drain type.
Output points: 8 points.
OFF leakage current: 0.1mA.
Output protection function.
Rated load voltage / current: DC24V/DC24V/0.1A.
External connection: 2 wire.
Fast connector type.
Simple wiring through quick connector.
Can be installed along the 6 direction.
MITSUBISHI PLC program simulation debugging
The basic idea of program simulation debugging is,
In order to facilitate the form of simulation to generate the actual state of the scene,
Create the necessary environmental conditions for the operation of the program.
Depending on the way the field signals are generated,
The simulation debugging has two forms of hardware simulation and software simulation.
