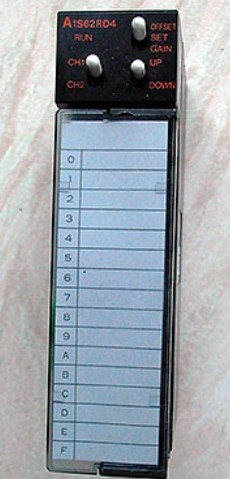

A1S62RD4 | MITSUBISHI Temperature sensor input module A1S62RD4
MITSUBISHI A1S62RD4 Manual And Instructions
A1S62RD4 datasheetPDF datasheet
A1S62RD4 HardwareUser's Manual
A1S62RD4 User's Manual
MITSUBISHI A1S62RD4 Product information and technical parameters：
Brand: MITSUBISHI
Name: Temperature sensor input module
Model: A1S62RD4
Temperature sensor: PT100, 4 wire system.
The A1S62RD3 and A1S62RD4 temperature sensor input modules allow the platinum resistance temperature sensing element to be directly connected to the PLC,
This component converts a signal from a temperature measuring element to a numeric value that represents a temperature measurement value,
This temperature value can be used for the control process.
The length of time required to execute the instruction, the length of the user''s program, the type of instruction, and the speed of the CPU execution are very significant,
Generally, a scanning process, the fault diagnosis time,
Communication time, input sampling and output refresh time is less,
The execution time is accounted for the vast majority of.
The response time of PLC is the interval between the time of the change of the external output signal of the PLC and the time of the change of the external output signal which is controlled by it,
Lag time, this is the time constant of the input circuit,
The time constant of the output circuit, the arrangement of the user statement and the use of the instruction,
The cycle scan mode of PLC and the way of PLC to refresh the I/O and so on.
This phenomenon is called the I/O delay time effect.
