Drive unit.
MITSUBISHI universal AC servo amplifier MELSERVO-J4 series.
Rated output: 45kw.
Interface: SSCNET III /H.
Power supply: three phase AC400V.
Support position control, speed control, torque control.
Position control to follow the position instructions.
When the control is inserted, the position control is performed.
Speed control follows the speed command to control the speed within a certain range

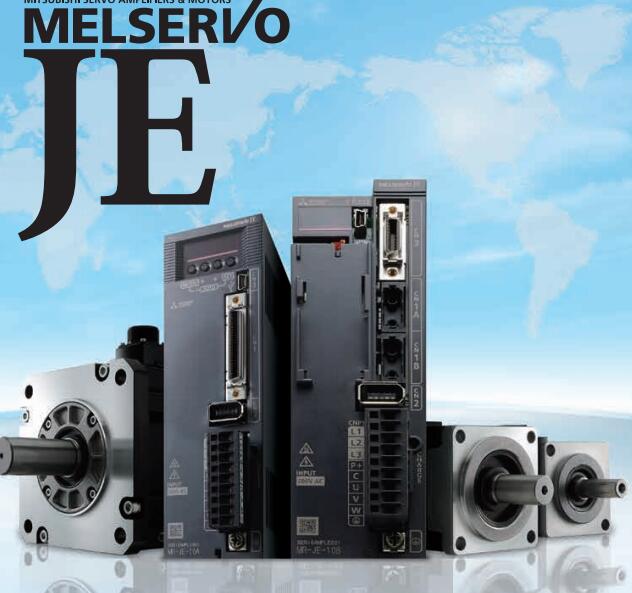

MR-JE-40B
Torque control to follow the torque command to control the stable torque.
Function of switching amplitude. The increase in the process of switching and stopping,
And in the operation of the use of the switching signal, switching growth. Superior high efficiency IPM motor.
Output power: 30kw.
Rated speed: 1500r/min.
Voltage level: 200V.
IPM motor MM-EFS series can not be used to run the power frequency power.
The total wiring length of the IPM motor shall not exceed 100m.
1 inverters can not connect multiple IPM motors at the same time. QCPU (Q mode) bus connection.
1 joint.
Applicable model: A956WGOT. Servo motor series: medium inertia, medium power.
Rated output: 2.0kw.
Rated speed: 2000r/min.
Electromagnetic brake: with.
Shaft end specification: Standard (straight axis).
Voltage: 400V level.
Characteristics: medium inertia has two types of low speed and high speed, suitable for different applications.
IP level: IP67.
Application example:
1, material handling system.
2, industrial robots.
3, X-Y working table.
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Motor capacity selection soft (MRZJW3-MOTSZ111E)
Friendly interface design, only in the mechanical description window input constant and operation mode can choose the best servo amplifier,
The servo motor and the regenerative braking options, but also in the selection window in the selection of linear servo motor and direct drive motor.
Characteristic
(1) 10 typical mechanical transmission structure can be used to choose
(2) user defined operating modes (location and speed control)
(3) in the selection process, the feed speed and torque can be displayed in a graphical format.
(4) the calculation process can be displayed
Can easily calculate the power of the servo motor free software!
MR-JE-40B Operation manual / Instructions / Catalog download link:
/searchDownload.html?Search=MR-JE-40B&select=5
