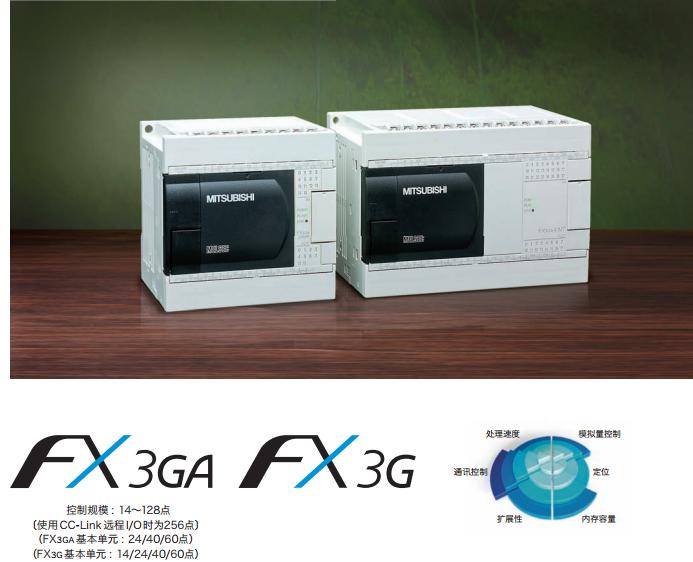

MITSUBISHI FX3G-40MT/DSS Market price | FX3G-40MT/DSS Introduction

Input and output points: 10 points.
Power supply: AC100-240V.
Input points: 6 points.
Output points: 4 points.
Output form: transistor output (source).
Power consumption: 19W.
Weight: 0.3KG.
Outline dimension: 60x90x49mm.
Built in CPU, power supply, input and output.
Keep FX1S compact body, while adding more features.
Special adaptor and function expansion board can be installed and used FX3 series FX3G-40MT/DSS
High speed operation.
Basic instructions: 0.21 s/ instruction
Application instruction: 0.5 s/ instruction
Large capacity memory.
Built in program memory 4000 steps.
No battery.
Auxiliary relay: 1536 points.
Timer: 138 points.
Counter: 67.
Data register: 3000.
A new application model.
FX3SA is a basic model on the basis of the basic performance of the FX1S increased the expansion of the new models.
FX3SA is suitable for all kinds of fields, such as analog quantity, Ethernet, MODBUS function, small scale equipment and so on.
Basic models suitable for small scale control.
Compact but powerful,
At the same time, the analog quantity and the communication function and so on. Type: MR-J series.
Rated output: 0.4KW.
Suitable for motor series: HA-ME.
Voltage: single phase AC100V.
It is very helpful to improve the stability of the low speed control of the servo motor.
But there is no direct effect to improve the accuracy of position control.
There are, of course, software compensation that is similar to pitch compensation,
Can improve the physical resolution of the single lap, so as to improve the accuracy of positioning control.
This can be effectively used in the use of the robot control of the indexing table.
It is also because of the application of splicing technology,
The rotary encoder will be more widely used in the high precision servo control in the harsh environment.
The use of rotary encoder with 224/ in the servo motor has been used in the servo motor.
Encoder serial communication system, the communication frequency can only be limited to 10M. Length: 1 meters.
Purpose: MR-JE-A, MR-TB50 connection with.
FX3G-40MT/DSS Operation manual / Instructions / Catalog download link: /searchDownload.html?Search=FX3G-40MT/DSS&select=5
