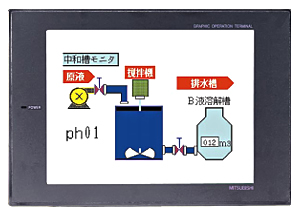

MITSUBISHI A951GOT-QSBD-M3 Market price | A951GOT-QSBD-M3 Introduction

Can be isolated from the output of the programmable controller, the a/b/c contact relay, SSR, Tr output.CC-Link/LT master station.
Transmission speed: 2.5Mbps.
Remote input / output: 1024 points.
16 point mode.
In the cabinet, the device can also respond to high speed.
CC-Link/LT link scan time to reach the highest 1.2ms (2.5Mbps) at 64 stations,
Excellent response performance is achieved.
Can be selected according to the transmission distance 2 A951GOT-QSBD-M35Mbps, 625kbps, 156kbps.
Comfortable environment without network awareness.
Parameter settings that do not require any trouble.
Moreover, the transmission speed only through the master module to set, can easily use the remote I/O. Input type: DC input, positive common end.
Input points: 8 points.
Enter the response time: 1.5ms the following.
Rated input voltage / current: DC24V/7mA.
Output form: transistor output, leakage type.
Output points: 8 points.
OFF leakage current: 0.25mA.
Output protection function.
Rated load voltage / current: DC24V/0.5A.
External connection: 3 line /2 line type.
According to the external connection mode and the external equipment input and output specifications,
Choose from a rich product lineup.
Finger protection through the upper part of the terminal,
The human body will not be exposed to live parts,
Therefore, the terminal station type remote I/O module can be directly mounted to the machine tool. Servo motor series: medium inertia, medium power.
Rated output: 3.0kw.
Rated speed: 1000r/min.
Electromagnetic brake: with.
Shaft end specification: Standard (straight axis).
Characteristics: medium inertia has two types of low speed and high speed, suitable for different applications.
IP level: IP67.
Application example:
1, material handling system.
2, industrial robots.
3, X-Y working table.
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Motor capacity selection soft (MRZJW3-MOTSZ111E)
Friendly interface design, only in the mechanical description window input constant and operation mode can choose the best servo amplifier,
The servo motor and the regenerative braking options, but also in the selection window in the selection of linear servo motor and direct drive motor.
Characteristic
(1) 10 typical mechanical transmission structure can be used to choose
(2) user defined operating modes (location and speed control)
(3) in the selection process, the feed speed and torque can be displayed in a graphical format.
(4) the calculation process can be displayed
Can easily calculate the power of the servo motor free software!
A951GOT-QSBD-M3 Operation manual / Instructions / Catalog download link: /searchDownload.html?Search=A951GOT-QSBD-M3&select=5
