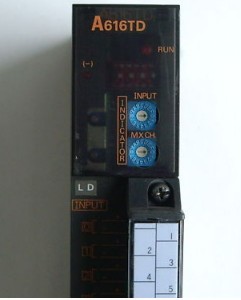

MITSUBISHI A616TD Market price | A616TD Introduction

Number of channels: 4 channels
Sensing method and temperature range: PT100
A1S64TC series component is a kind of temperature controller combined with ANS series CPU.
Components with temperature measurement input and built-in PID algorithm control output,
Can be used in a variety of temperature control occasions.
Each component controls up to 4 loops at most.
Thermocouple input or PT100 3 wire temperature sensor input A616TD
Control output switching signal for the output of the transistor.
BW is a signal with broken line detection function. Image operation panel equipped with liquid crystal display.Maximum frequency: 200kHz.
Input points: 2 points.
Output form: transistor 4 point output.
Weight: 0.2kg.
1 FX3U-2HC can enter the 2CH high speed signal, can achieve the maximum count of 200kHz.
Through the comparison of the value of the PLC set, each ch with 2 points of high-speed output terminal.
In the 2 phase count, can be set 1, 2, 4 frequency.
Can be achieved by PLC or external input to count the licensing / prohibition.
Can also be connected to the linear drive output type of the encoder.
FX3UC host connected to the FX2NC-CNV-IF, the need for FX3U-2HC or FX3UC-IPS-5V. MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 1.0kw.
Interface type: general pulse interface type.
Power specification: three phase AC400V.
Pulse train and analog input as universal interface.
Can choose the position, speed and torque control mode.
The use of advanced tuning features such as advanced vibration suppression control and adaptive filter,
Greatly improve the performance of the machine.
MR-J3, your partner.
Higher performance, more features, more convenient to use.
Highest performance in the industry.
Speed response frequency up to 2.1kHz. Control axis: maximum 8 axes.
Teaching operation function: No.
To stop the speed control function at the specified location.
The servo motor can rotate at a predetermined speed,
After starting the specified location to stop the instruction,
Can be set in advance to stop the location.
You can change the speed by changing the value of the options at the time of the operation,
You can also change the acceleration / deceleration time.
Phase compensation function.
The mixed function of virtual mode and real mode.
Smooth clutch linear acceleration / deceleration function.
A616TD Operation manual / Instructions / Catalog download link: /searchDownload.html?Search=A616TD&select=5
